Description

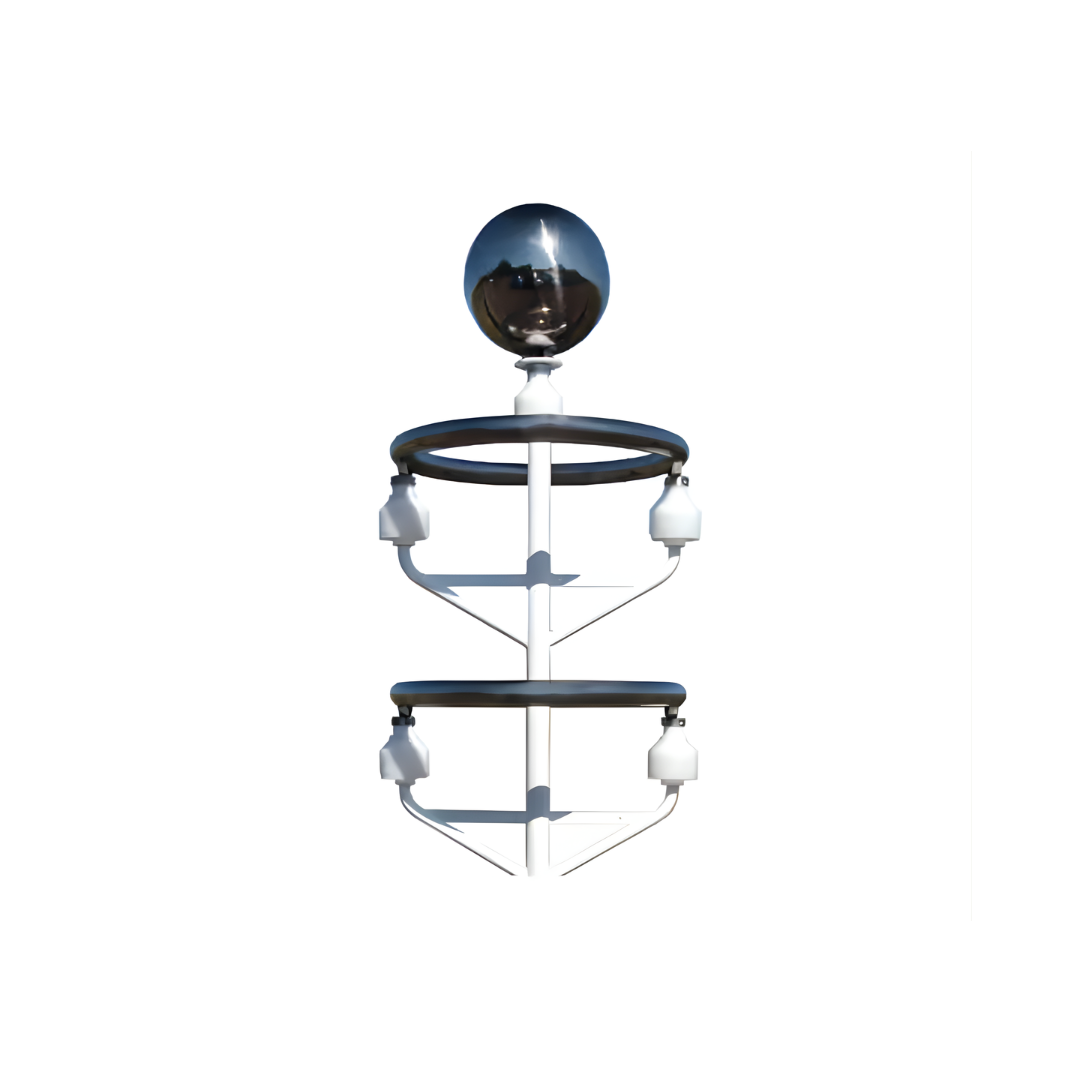

The BTD-300 Thunderstorm Detector is a long-range standalone lightning and thunderstorm detector designed for safety-critical sites. It detects cloud-to-ground, cloud-to-cloud and intra-cloud lightning up to 83 km and monitors atmospheric electric-field changes and charged precipitation to provide earlier warning of developing storm risk.
Its quasi-electrostatic sensing principle provides strong immunity to radio-frequency interference and supports a false alarm rate below 2%. The unit can communicate over RS422 or Ethernet, with optional relay outputs and optional storm direction finding.
Key Features
- Lightning detection up to 83 km
- 10 m range resolution
- Detects major lightning types
- Early warning from electric-field changes and charged precipitation
- RS422 or Ethernet output
- Optional volt-free relay outputs
- Optional direction finding
- IP66 outdoor construction
- Complies with EN50536 Class 1 and IEC 62793 Class A performance requirements
Datasheet
