800 series  fr-flow rate control valve

800 Series  FR-Flow Rate Control Valve

£0.00 In Stock Sold out

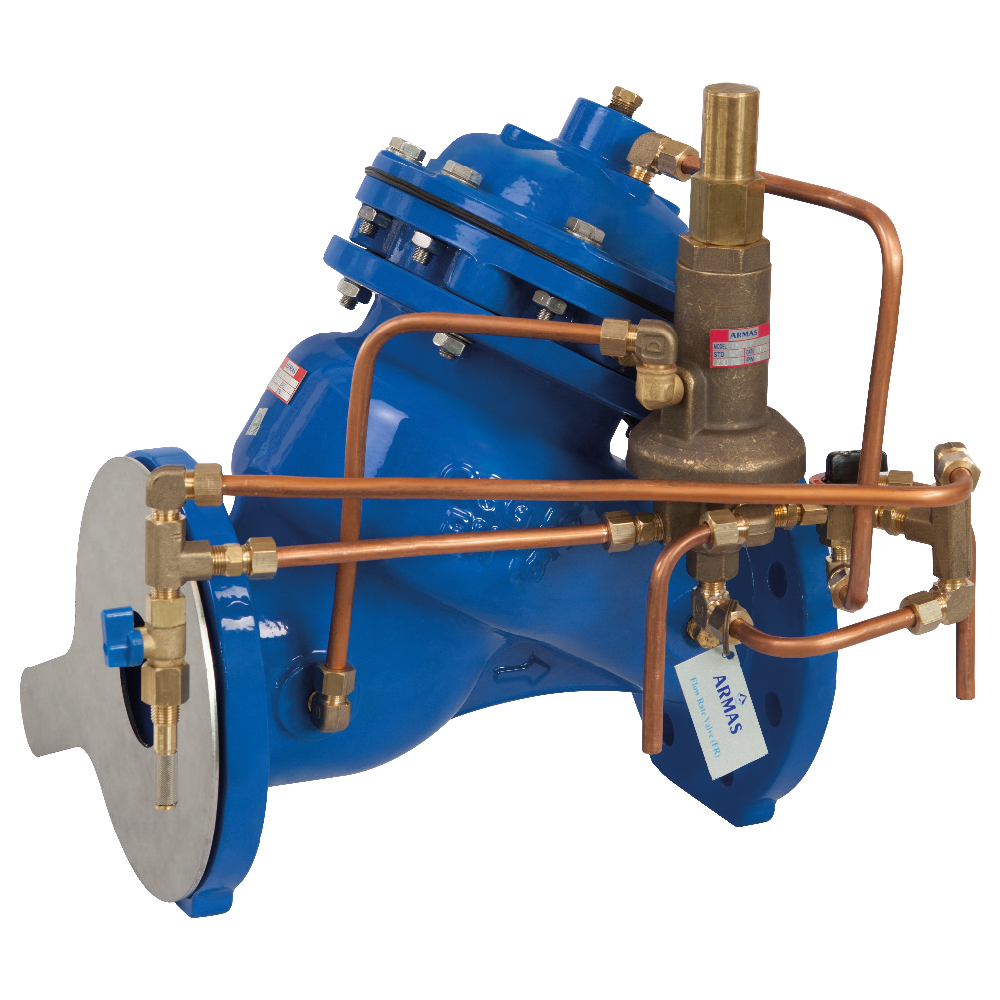

Armaş “FR” model flow rate control valve is designed to limit desired flow rate. The orifice on main valve upstream creates pressure difference and 3/way differential pressure set pilot mounted in control chamber of valve senses this pressure difference and ensures that main valve opens in desired flow rate. Valve thereby limits desired flow rate automatically and keeps it fixed. It eliminates over flow by preventing excessive flow during reverse washing in filtration systems.

The valve will be diaphragm actuated disc closing automatic hydraulic control valve which works with line pressure. Double-chamber diaphragm actuator provides quicker and non-impact opening/ closing thanks to disc-closing valve design and prevents blockage by showing less sensitivity against solid substances within fluid.

Valve size same as main line or one size smaller. Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec)
