600 series  alt-altitude control valve
ARMAS

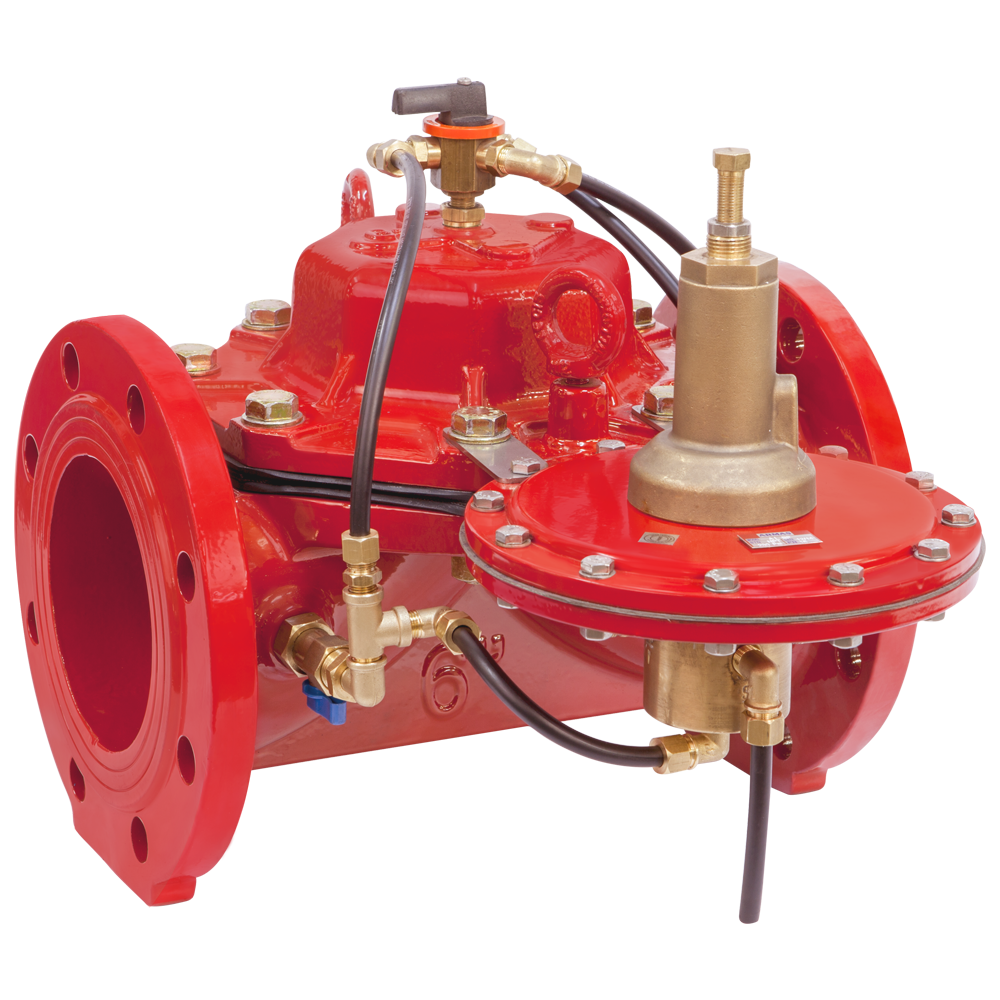

600 Series  ALT-Altitude Control Valve

  • Activated by static pressure of the tank
  • Sensitive pilot valve operates without floats
  • Direct diaphragm closure with hydraulic control
  • No wearable parts (stem, bearing, or seat)
  • Controlled via hand-operated selector valve
  • Supports up to 5.5 m/sec (18 ft/sec) continuous flow
£0.00 In Stock Sold out

Armaş “ALT” model is an automatic, high sensitive pilot controlled, level control valve, activated by the static pressure of the tank tower. The high sensitive pilot valve opens or close the main valve in response to the static pressure of water level in tank. The pilot valve located outside the tank tower. There is no need any floats.

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts such as stem, bearing and seat exist in main valve body. The valve position will be controlled by a hand operated selector valve.

Valve size same as main line or one size smaller. Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec)
