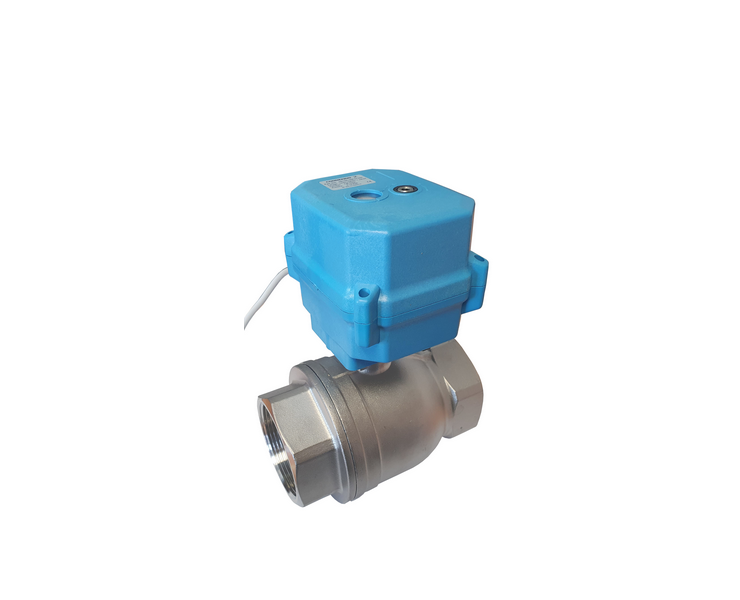

2″ BSP Motor actuated WRAS ball valve 12-24vAC/DC or 110-240vAC
- Stainless steel valve body
- Rated up to 10 Bar +90°C.
- WRAS EPDM/PTFE Seals
- Duty 100%: 70,000 cycles
- Width 88.00
- Height 185.00
- Length 130.00
2 inch BSP motor actuated WRAS stainless steel ball valve ABVMO-20S.
Cycle life: 70,000 open/close
Power: 10 Watts
Open or close time: 10 seconds
Mounting: ISO5211 F03 + F05
Temperature: -15°C to +60°C ambient
Voltages 12vDC-24vDC-24vAC or 110-240vAC with multi voltage technology.
Control option: Failsafe closed, Failsafe Open or Power Open/Power Close.
Visual position indication
Manual Override (with Allen key provided)
E2 position feed back switches. (Volt free, no voltage is supplied from the actuator. 36v or 220v, 0.4 Amp Max).
WRAS approved certificate number 2012107
2 BSP thread, option NPT thread
Body: 304 stainless steel
Pressure: 0 to 10 Bar
Temperature rating: 0 to +90°C Max
Seals: PTFE + EPDM (WRAS Approved)
Media: air, water and other media suitable with stainless steel, EPDM + PTFE.
Options to choose:
a. Failsafe Closed = Power +ve Red; -ve Black valve will open, Power OFF will automatically close with reserve power.
b. Failsafe Open = Power +ve Red and -ve Black valve will close, Power OFF will automatically Open with reserve power.
Failsafe actuators require initial 30 second power ON when new to charge reserve power, thereafter a minimum 10 Seconds.
Will draw less than 1 Watt when powered and not moving.
E2 volt free open + closed position feedback 3 wires (Green+Yellow and White)
c. Power Open/Power Close = Connect Red +ve and Black -ve, Green is the control wire.
Power to GREEN valve opens, remove power from GREEN valve closes.
E2 volt free open + closed position feedback 4 wires (Blue+Grey and Yellow+White)
