11/2″ Motor actuated WRAS ball valve 12-24vAC/DC or 110-240vAC
- Stainless steel valve body
- Rated up to 10 Bar +90°C.
- WRAS EPDM/PTFE Seals
- Duty 100%: 70,000 cycles
- Width 88.00
- Height 166.00
- Length 115.00
- Description
- Downloads

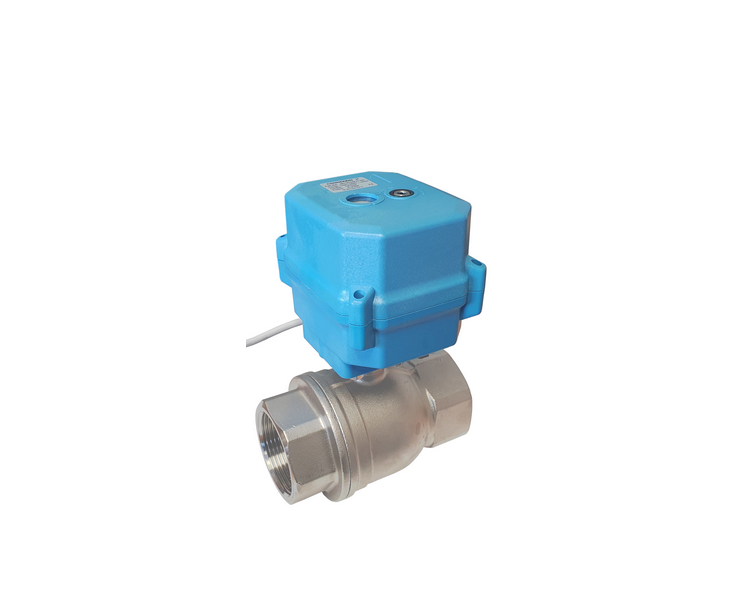

The ABVMO-14S is a high-performance 1½″ BSP stainless steel ball valve featuring WRAS-approved PTFE and EPDM seals (Cert. No. 2012107), ideal for potable water and other compatible media. Its 304 stainless steel body and 40mm full bore ensure durability, while its 10 bar pressure rating and 90°C temperature capacity make it suitable for a wide range of industrial and commercial applications.
Equipped with a robust electric actuator, it delivers 16–27Nm torque, has a 70,000-cycle lifespan, and operates on multi-voltage input (12–24V AC/DC or 110–240V AC). The actuator is IP67 rated, features manual override, visual position indication, and E2 volt-free position feedback switches.
Control options include Failsafe Closed, Failsafe Open, and Power Open/Close, offering flexibility for different system needs. Compact, reliable, and easy to integrate, this valve is an excellent solution for automated flow control where safety and performance are key.
