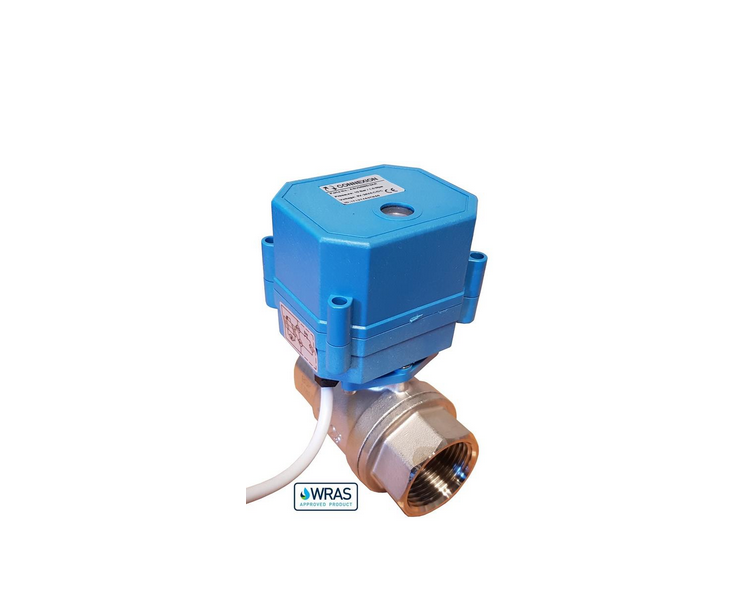

1″ Electrically Actuated WRAS Ball Valve 9-24vAC/DC or 110-240vAC ABVM08S

1 inch Motor Actuated WRAS Certified Ball Valve Mini series ABVM08S ®.

Actuator:
Cycle life: 100,000+ open/close
Open / Close times: 9-24 volt: Open 4 second / close 4 seconds OR 110-240 volt: Open 4 seconds / Close 6 seconds
Power: 9-24 volt: 1 to 1.2 Watts, 50mA to 130mA. (Back EMF 3 to 5 Volts over nominal. 9v=130mA, 12v=100mA, 24v=50mA, Initial 10mSec inrush +50% Max.)
110-240 volt: 2 to 5 Watts, 50 to 100mA. (For Failsafe capacitor when fully charged 50mA 2 Watts Max)

Protection: IP67
Temperature: -15°C to +50°C ambient.
Voltage: 6 to 24 volt AC/DC or 110 to 240 volt AC with multi voltage technology. (Manual override version 9-35 volt)
Includes: visual position indication.
Control options: Failsafe Closed, Failsafe Open, or Power Open/Power Close.

Ball Valve:
WRAS approved certificate number 2010303
1 BSP thread, option NPT thread
Bore: 25.0mm
Body: 304 stainless steel
Pressure: 0 to 10 Bar
Seals: PTFE + EPDM (WRAS Approved)
Temperature: -15°C to +100°C.
Media: air or water suitable with stainless steel, EPDM + PTFE.

Options to choose.
1. Failsafe Closed = Power ON will OPEN - Power OFF will automatically CLOSE with reserve power. (ABVM08S/9AR + ABVM08S/2AR)

2. Failsafe Open = Power ON will CLOSE - Power OFF will automatically OPEN with reserve power. (ABVM08S/9AR-NO + ABVM08S/2AR-NO)

Failsafe: Requires 15 second power ON when out of the box to charge, thereafter minimum 10 second power ON when energised for recharging.
Will draw less than 0.22 Watt when powered and not moving.

3. Power Open/Close = connect RED +ve and BLACK -ve wires, GREEN wire is the control wire.
Power to GREEN valve opens or power off valve closes. (ABVM08S/2 and ABVM08S/9)

4. Control voltage 9 to 24v AC/DC (9) or 110 to 240vAC (2)

Other options.
Manual Override = Button Lift + Twist will open/close valve and disengage motor, push back down to re-engage motor.
Available 9 to 24 volt only. (ABVM08S/9AR-MO, ABVM08S/9AR-NO-MO, ABVM08S/9-MO)

ABVM Weather Cover (recommended for use outdoors if ordered with manual override system).

E2 Position Switches = Position OPEN and CLOSED volt free feed back (no voltage supplied from actuator).
Rating 0 to 36vDC 0.4 Amp Max. (ABVM08S/9AR-E2, ABVM08S/2AR-E2, ABVM08S/9-E2, ABVM08S/2-E2)

Ideal for dirty or clean water drainage for caravans, canal boats, motor homes, HVAC, solar water heating, solar thermal system, water recycling, rainwater system, BMS building management systems, communal and district heating systems, tenant heat meter services, harvested grey water systems, home energy control systems, building zone applications and heating metering systems.
