TECNIDRO

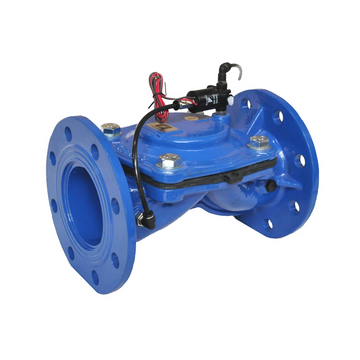

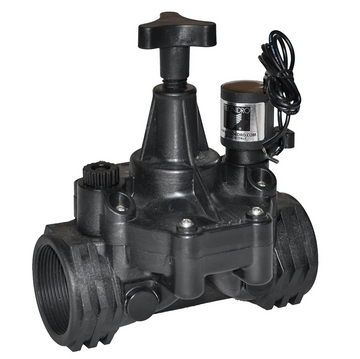

- Solenoid Type: 2-way – 2 wires – Normally Closed (N.C.)
- Body: Reinforced nylon Nominal
- Pressure: 10 bar Operating
- Voltage: 24V AC 50÷60 Hz
- Diaphragm: Natural rubber with reinforced fabric
 |
Technical Datasheet |
- Valve Type: 3-way, differential
- Body: Brass
- Piston rod: Stainless steel
- Float: Polypropylene (PP)
- Connections: Ø1/8” F B
- Nominal Pressure: 16 bar
|
Technical Datasheet |

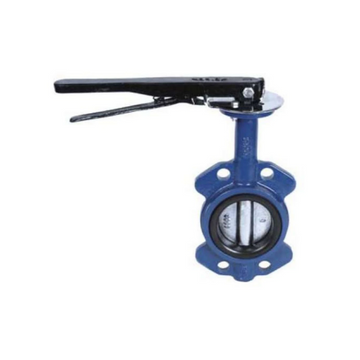

- Nominal Pressure: PN10/PN16
- Working Temperature: -10°C/+80°C
- Bidirectional Seal
- Internal and External Epoxy Coating
- Removable Sealing
- Low Operating Torque
|
Technical Datasheet |

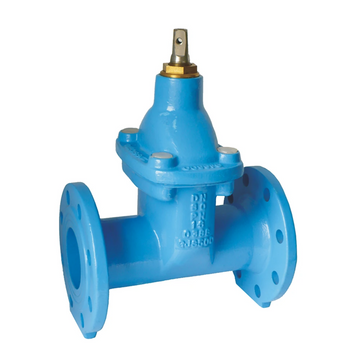

- Working Pressure: Pn10/16/25
- Working Temperature: -10°c/+70°c
- Internal and External Epoxy Powder for Potable Water
|
Technical Datasheet |

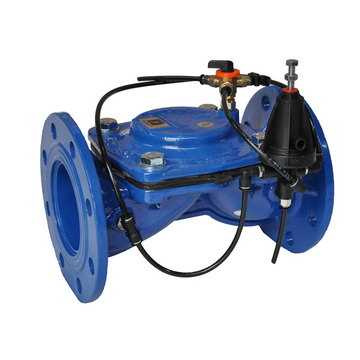

- Pilot Model: QP3B
- Nominal Pressure (PN): PN16
- Flow regulation range: Spring: 2.0 ÷ 15.0 m.w.c.
- Pilot body: Brass
- Cover: Brass
- Fittings: Teflon
- Ball: Stainless steel
- Connections: Body: 5 x Ø1/8” F
- Manual control: Ø1/4” M BSP (body), Ø1/8” F BSP (Open/Close/Auto control)
|
Technical Datasheet |

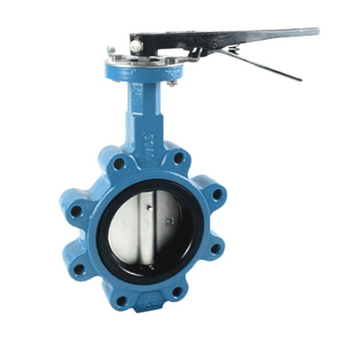

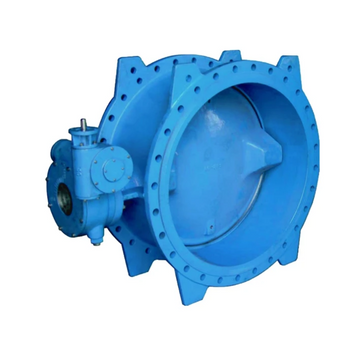

- Nominal Pressure: PN10/PN16
- Working Temperature: -10°C/+80°C
- Bidirectional Seal
- Internal and External Epoxy Coating
- Shaft Seals Replaceable during Pressurisation
- Low Operating Torque
|
Technical Datasheet |
- Nominal Pressure: PN10/PN16
- Working Temperature: -10°C/+80°C
- Bidirectional Seal Internal and External Epoxy Coating
- Shaft Seals Replaceable during
- Pressurisation Low Operating Torque
|
Technical Datasheet |

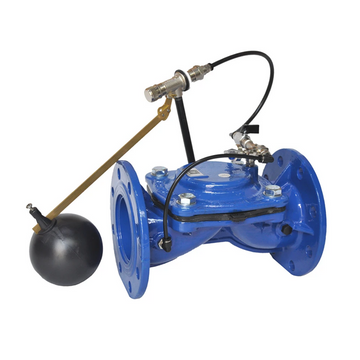

- Pilot Model: GAL Type: 2-way, modulating
- Installation: Horizontal
- Body: Brass
- Arm: Stainless steel
- Float: Polypropylene (PP)
|
Technical Datasheet |

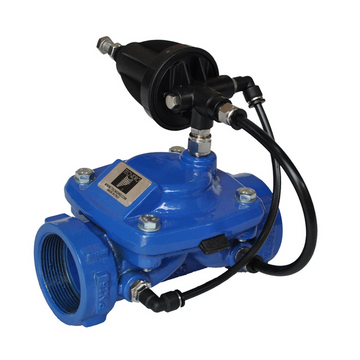

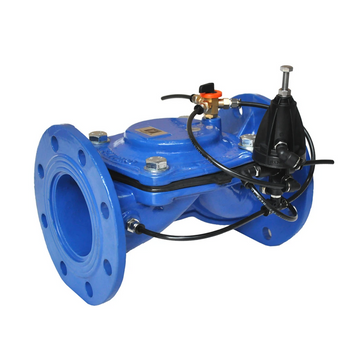

- Valve Type: Hydraulic, 3-way
- Pilot: Model RP3PP
- Pilot Body: Reinforced nylon
- Cover: Reinforced nylon
- Manual Control CM4V: Brass, with stainless steel ball and Teflon seat
- Manual control body: Ø1/4” M BSP
- Open/Close/Auto: Ø1/8” F BSP
|
Technical Datasheet |

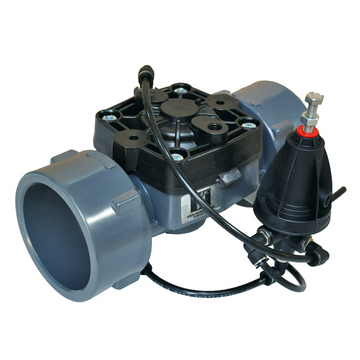

- Pilot Model: RP3PP
- Pilot body lower part: Reinforced nylon
- Cover: Reinforced nylon
- Manual control CM4V: Brass body, stainless steel ball, Teflon seat
- Manual control body: Ø1/4” M BSP Open/Close/Auto: Ø1/8” F BSP
|
Technical Datasheet |

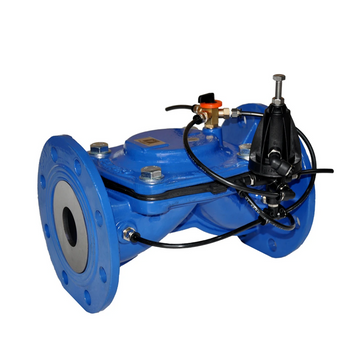

- Valve Type: Hydraulic, 3-way
- Pilot: Model SP3PP
- Pilot Body: Reinforced nylon
- Cover: Reinforced nylon
- Manual Control CM4V: Brass, with stainless steel ball and Teflon seat
|
Technical Datasheet |

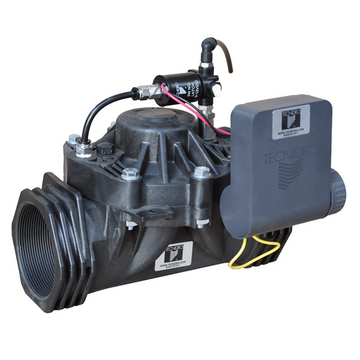

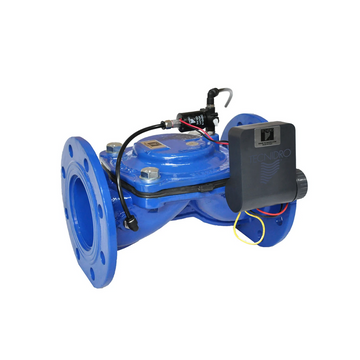

- Valve Type: Electrohydraulic, bistable, 3-way
- Solenoid Body Material: Nylon
- Connections: Ø1/8” F BSP
- Nominal Pressure: 10 bar
- Operating Voltage: 9-12V DC
- Operating Temperature of Controller: from -10°C to 60°C
- Solenoid Protection Rating: IP66
- Controller Protection Rating: IP67
|
Technical Datasheet |
- Solenoid Type: 3-way bistable
- Solenoid Material: Nylon
- Connections: Ø1/8” F BSP
- Nominal Pressure: 10 bar Voltage: 9-12V DC
- Protection Rating: IP66
|
Technical Datasheet |
- Nominal Pressure: PN10/PN16
- Working Temperature: -10°C/+80°C
- Bidirectional Seal
- Internal and External Epoxy Coating
- Shaft Seals Replaceable during Pressurisation
- Low Operating Torque
|
Technical Datasheet |
- Valve Type: 3-way – 2 threads – Normally Open (N.O.)
- Body Material: Brass Nominal
- Pressure: 10 bar Operating
- Voltage: 24V AC, 50-60 Hz
- Protection Rating: IP65
|
Technical Datasheet |

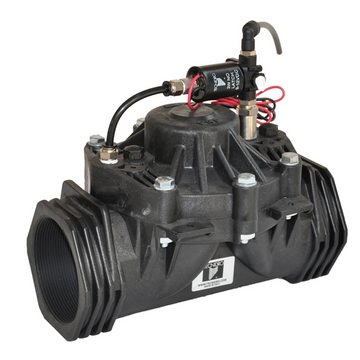

- 3-way solenoid
- Configuration: Normally Open (N.O.) or Normally Closed (N.C.)
- Materials: Reinforced nylon body (EL-BA), Ø1/8” F BSP connections
- Nominal Pressure: 10 bar
- Protection Rating: IP66 (EL and EL-BA)
- Orifice (EL-BA): 2 mm, suitable for unfiltered water
|
Technical Datasheet |
- Controls flow without external power
- Manual 3-position valve (CLOSE, OPEN, AUTO)
- Opens via hydraulic relay with external pressure
- Brass body (IM-CM4V) and nylon body (IM-SH)
- No special setup needed; simple air evacuation
- Compatible with hydraulic or electrohydraulic accessories for automation
|
Technical Datasheet |
