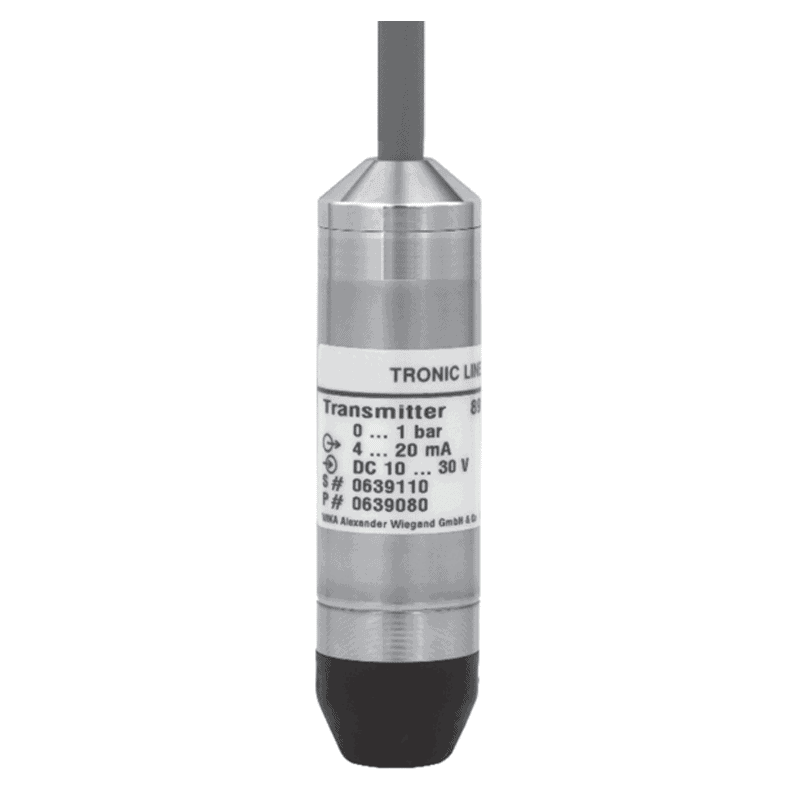

Level Sensor LS10
- Measuring range 100 mbar to 10 bar
- Immersion depth: max. 100 m
- Analog output 4..20 mA
- For drinking-, process-water, oil
- Process temperature -10..+60 °C
- Protection class IP68, depth of immersion max. 100 m
 |
Technical Datasheet |
- Description
- Downloads
The Level Sensor LS10 is a versatile liquid level transmitter designed to provide accurate and reliable measurements in various applications. With a measuring range of 100 mbar to 10 bar and a maximum immersion depth of 100 meters, it is ideal for use in drinking water, process water, and oil applications. The LS10 offers an analog output of 4-20 mA, ensuring easy integration with most control systems. It is engineered to withstand harsh environments with a durable IP68-rated construction, allowing for submersion in up to 100 meters of liquid.
Designed for efficient operation, the LS10 compensates for atmospheric pressure changes through a vent tube in the cable, enhancing its precision. It operates in temperatures ranging from -10°C to +60°C, making it suitable for various environments. Whether for drinking water, diesel, or process oils, the LS10 delivers high accuracy, with 0.25% of span, making it an excellent choice for commercial and industrial liquid level monitoring needs.
