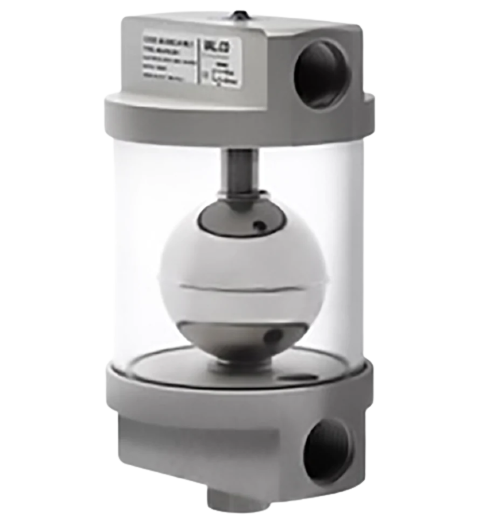

SIMPLE NG1

Bypass mounting
Transparent housing
1 or 2 fixed switch points
Stainless steel float and rod
Maximum working pressure 8 Bar
Operating ambient temperature -30 /+55 °C - 90% RH
Maximum working temperature 75 °C
Degree of protection IP65

£0.00 In Stock Sold out

Product Description
Technical Data
Downloads
Product Catalogue

Product Description

Mechanical level switch for liquids, designed for bypass mounting. In a transparent housing, the magnet-equipped float follows the actual level of the liquid and magnetically triggers a reed switch in an identified and fixed position. One or two independent contacts are available.

Technical Data
