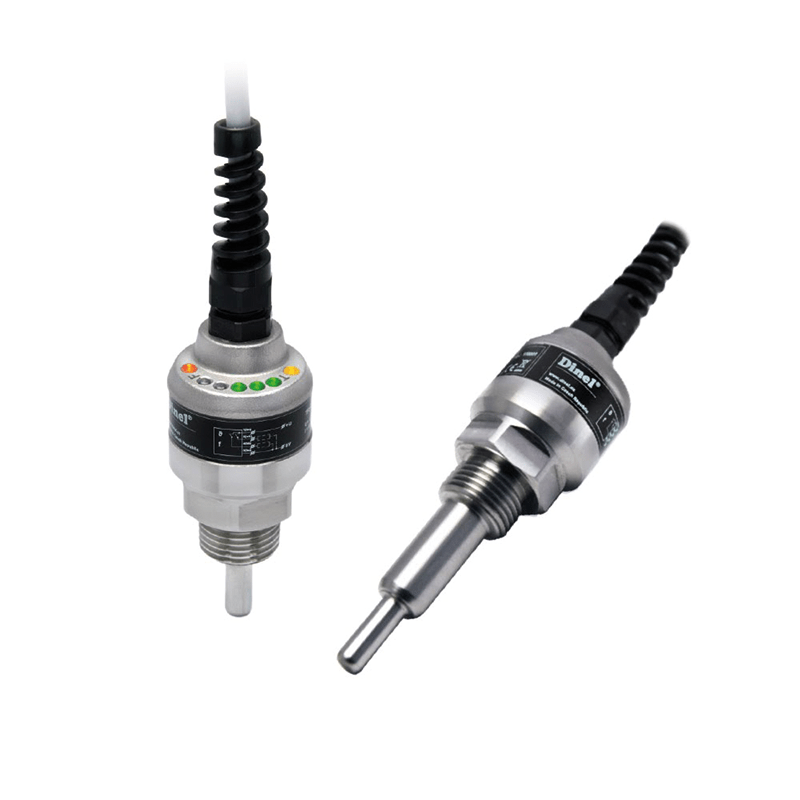

Dinel TFS-35 Thermal Flow Sensor

Description

Thermal flow sensor – TFS–35 is a compact measuring device intended for industrial use for flow rate sensing of liquid media and for monitoring it’s temperature when installed in a pipe. The sensor may be installed in plastic or metal pipes. Suitable for monitoring filling, cooling or lubricating media and it’s temperature.

Flow rate is indicated by means of a bar graph (5 green LEDs). Output (flow rate and temperature) switching indicator by means of LED (orange and yellow). Simple configuration using a magnetic pen. Sensor is made in a stainless steel design. Quick and simple installation thanks to simple construction.

For limit and continuous flow rate sensing of liquid media and for monitoring of their temperature

• These sensors are intended for installation in pipes, in which the actual flow rate and temperature occurs
• Flow rate measurement is shown in a bar graph by five green LED diodes and in the same graduation it is possible to select the limit for output switching (unswitching)
• Optical indication of the flow rate and temperature status via two LEDs
• Can be selected either 1x current output 4..20 mA and 1x limit PNP output, or 2x limit PNP output
• Settings provided by magnetic pen
• Stainless steel case

Technical Datasheet

Manual

Downloads

TFS-35 Thermal Flow Sensor Technical Datasheet

TFS-35 Thermal Flow Sensor Instruction Manual
