BIP ECO
ATMI

BIP ECO

  • Switching angle: +/-100°
  • Allowed fluid density: 0,70 to 1,15
  • Power supply: 250 VAC/VDC 50/60 Hz
  • Maximum pressure: 3,5 bars
  • Allowed temperature: 70 °C
  • Protection index: IP 68
  • Weight: 105 g
£0.00 In Stock Sold out

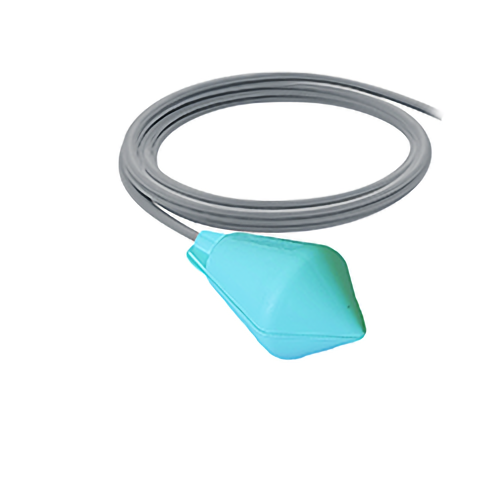

This float level switch (NO or NC) is the economical version of the BIP STOP. Indeed, it is technically similar to the BIP STOP but equipped with a high quality PVC cable instead of a neoprene cable.

Thanks to its wide switching angle of 100º, the BIP ECO protects the pump's engine and the electrical panels from jerking. This feature is highly appreciated in agitated liquids.

Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 meter.

These float level switches are used wherever magnetic level controllers can not be used because of impurities or deposits that may trap the float.

.
BIP ECO Technical Datasheet
