AQUA XL EP
- Switching angle: +/- 10°
- Allowed fluid density: 0,95 to 1,05
- Power supply: 12, 24, 48 VAC /VCC - 250 VAC /VCC 50/60 Hz
- Cut out power: 16 (6) A (16 A resistive; 6 A inductive)
- Maximum pressure: 3,5 bars
- Allowed temperature: 85 °C
- Description
- Downloads

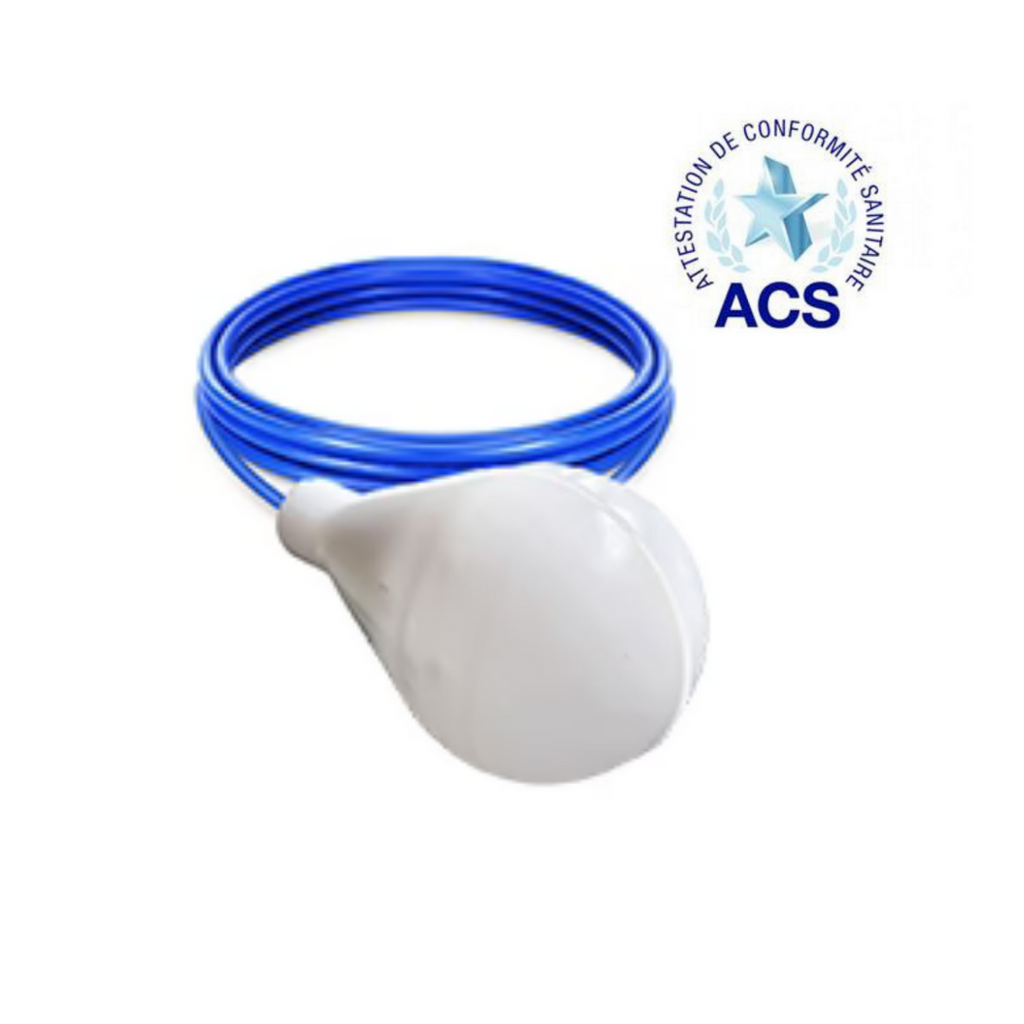

This ACS-certified float level switch is constructed with special components with internal ballast for drinking water applications. As the liquid level reaches the unit, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel. T
he float can ensure an exact level measurement thanks to its +/- 10° switching angle. Also, it can be used in high or low alarms. However, the AQUA XL EP level regulator is unsuitable for agitated liquids in the presence of an agitator or water tower. Please choose our float switch model: ATS 165 EP, ACS certified.
For pump control of several levels with several pumps in calm liquid with a float level switch equipped with a stainless steel adjustable ballast, choose the SOBA EP, ACS certified.
