QUICK Float Switch Kit 1
EUROSWITCH

QUICK Float Switch Kit 1" BSP with DIN Plug

  • 15-minute level switch - Simple to assemble
  • 1" BSP
  • N/O or N/C contacts
  • Ideal for hydraulic & water applications
  • Integral temperature switch option

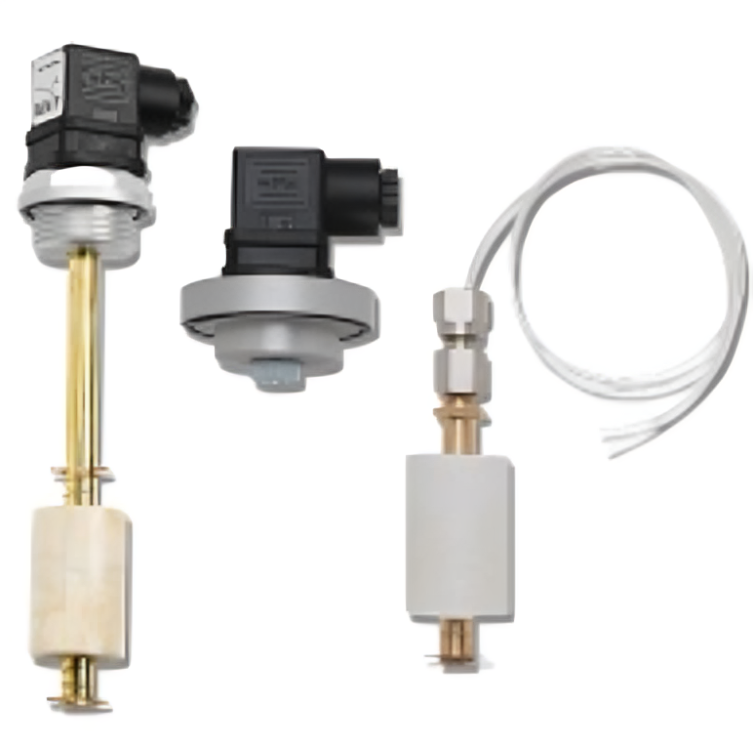

The PK Modular Electromagnetic Level Sensor is designed for use in mineral oils, fuels, and water. It features SPDT reed contacts (N.O./N.C.) with a maximum switching capacity of 80W and can operate at temperatures ranging from -15°C to +80°C. Available in three models—flange with 3 holes, 1" gas thread, or flange with 2 holes—the sensor offers a robust aluminum construction and is rated IP65 for protection. The float is made of foamed nylon, and the sensor comes with a UNI EN 175301-803 (DIN43650) connector.

QUICK Float Switch Technical Datasheet
