EUROSWITCH

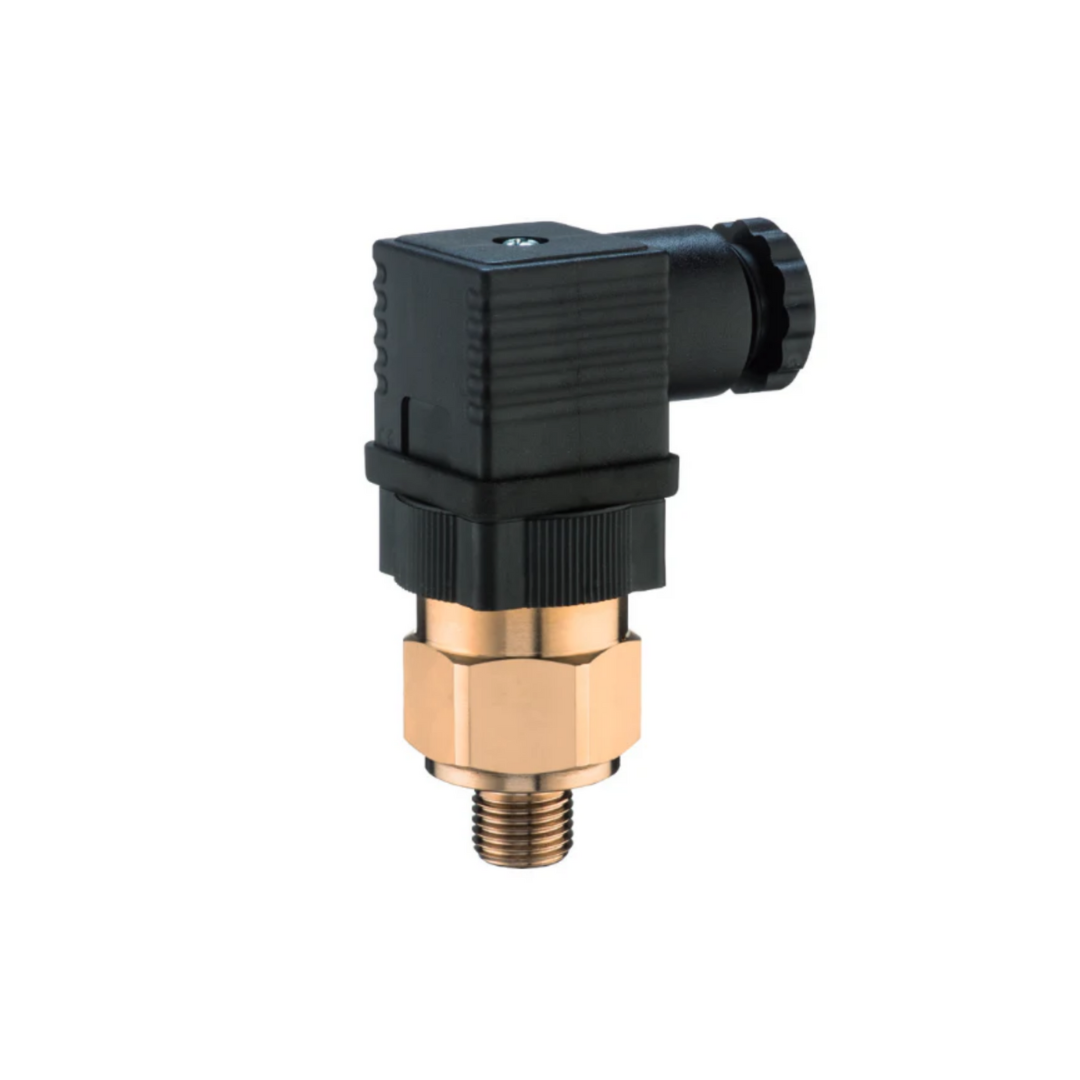

Model 387 Vacuum Switch
- Vacuum Switch ≤ 250V SPDT CO Contacts
- -200 / - 900 mbar adjustment ranges
- Over-pressures up to 15 bar
- Max working pressures up to 10 bar
- 1/4” BSP thread (others available)
- NBR seal or CR seal
- Brass body
 |
Technical Datasheet |
- Description
- Downloads
Description
The Model 387 Vacuum Switch is perfect for a variety of applications where adjustable switching pressure range is required. With a max working pressure of 10 bar and an overpressure limit of 15 bar, this switch can handle just about anything you throw at it. Plus, the nitrile diaphragm ensures reliable performance in even the harshest environments.
