Euroswitch

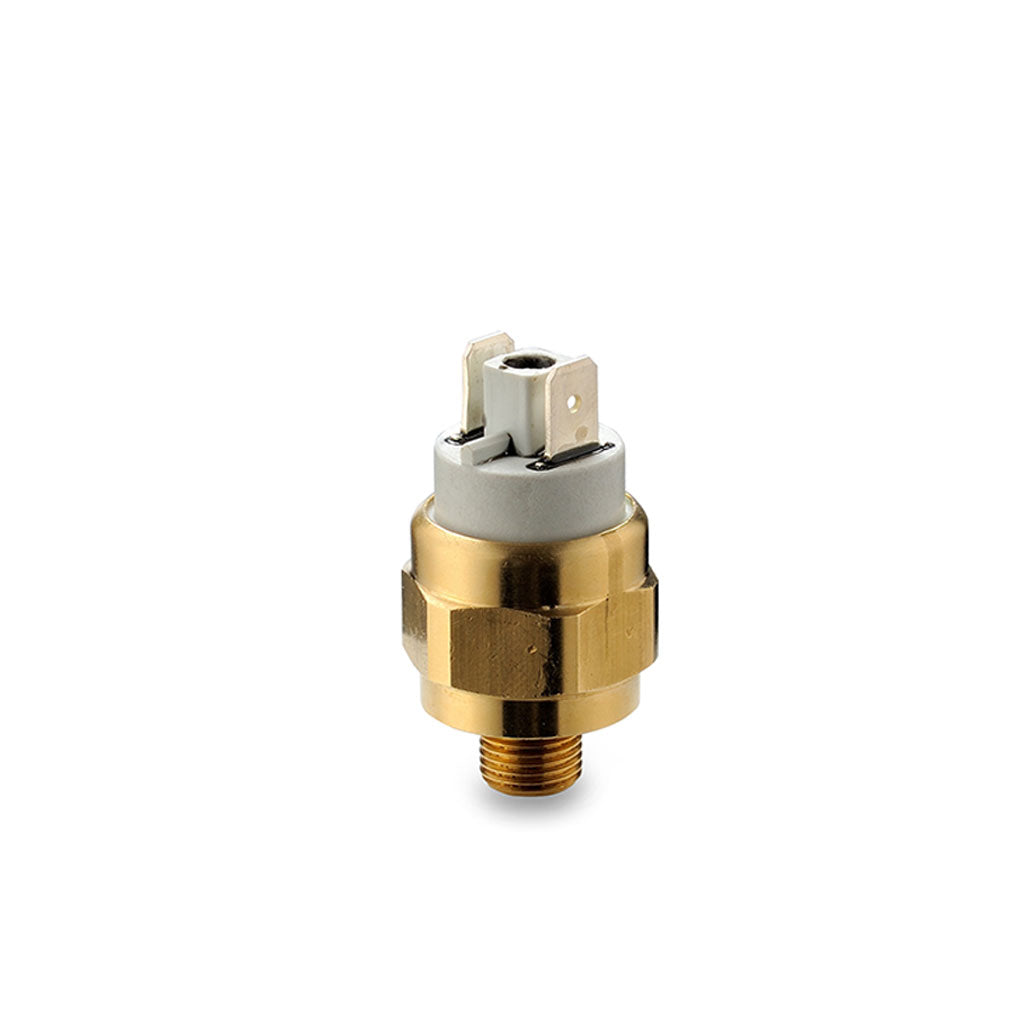

Model 25 Pressure Switch

High Amp Pressure Switch ≤ 48V
N/O or N/C Contacts Up to 10 bar adjustment ranges
Max over-pressure 50 bar
Max working pressures up to 20 bar
1/4” BSP thread (others available)
NBR seal (others Available)
Max current up to 5 amps

Product Description

The Model 25 Pressure Switch is ideal for a wide range of industrial applications. It features a small diaphragm pressure switch with choice of Normally Open or Normally Closed contacts, and adjustable switching pressure ranges up to 10 bar. The adjustment range options include 0.5 – 3.5 bar, 1 – 4 bar, and 4 – 10 bar. The max working pressures are 20 bar, and the max over pressure limit is 50 bar. Additionally, the max voltage is 48 volts and the max current is 5 amps. The product has a brass body and is temperature-resistant up to 80°C
