EUROSWITCH

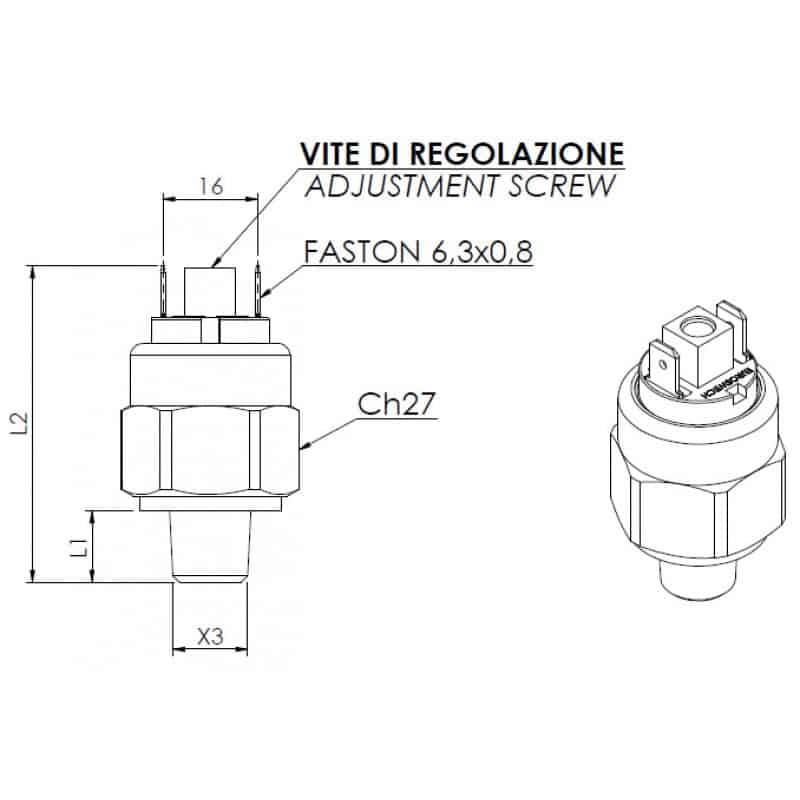

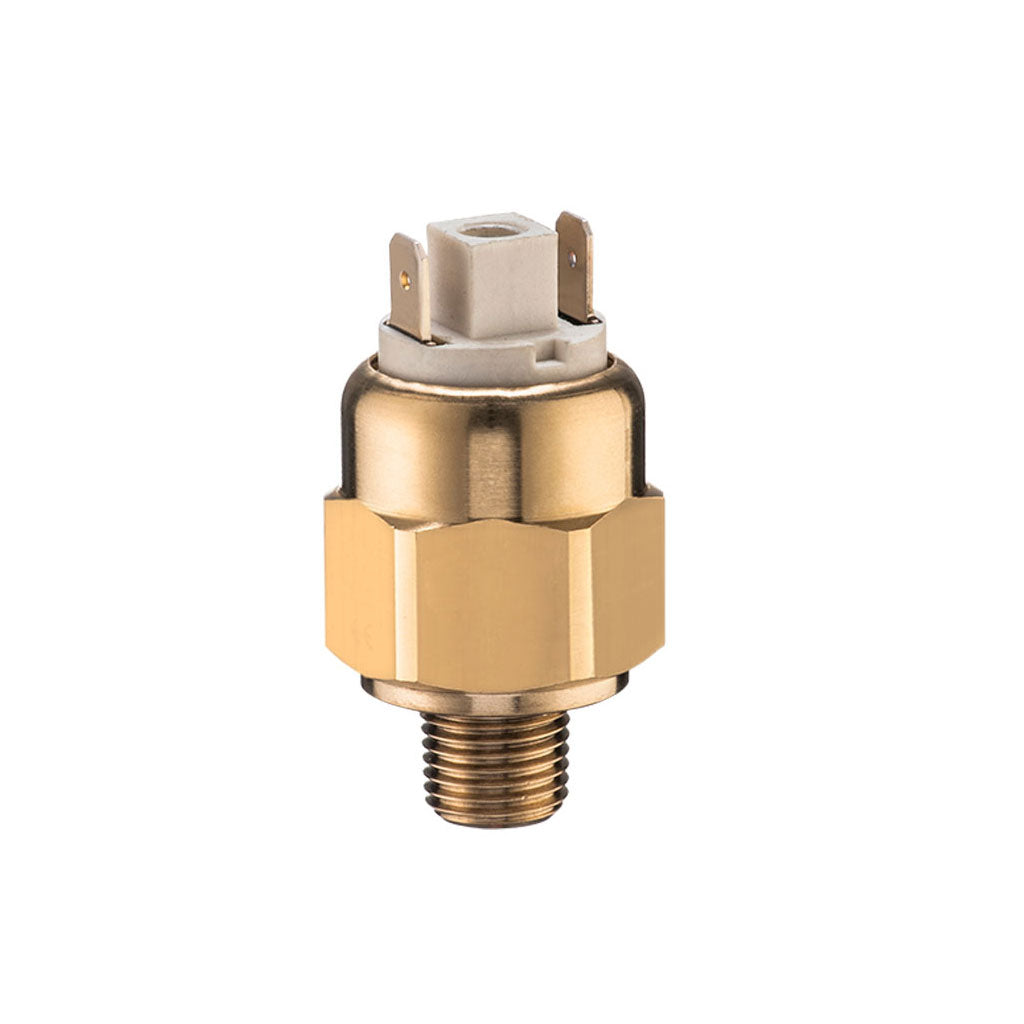

Model 357 Vacuum Switch
- Case Brass: (on request Stainless Steel)
- Electric contacts: Silver AgNi, on request gold plated
- Electrical connection: N.O. (White ) N.C. (Brown )
- Max switch voltage: 48V ac / dc
- Max switch current: 0,5A
- Max fluid temperature: 80°-120°C (depending on diaphragm)
- Max Overpressure limit: 35 bar
- Max Working pressure: 25 bars
- Protection degree IP00 with cover 3015010 IP54
- Weight ~ 90 gr
 |
Technical Datasheet |
£0.00
In Stock
Sold out
- Product Description
- Technical Data
- Downloads
Product Description
The Model 357 Vacuum Switch is a diaphragm vacuum switch that offers a choice of normally open or closed contacts. It's adjustable switching pressure range allows you to choose the right setting for your needs, and it can handle max working pressures up to 25 bar. Plus, it has an over pressure limit of 35 bar. The Model 357 Vacuum Switch is also operable at temperatures from -15°C to 120°C, making it perfect for a variety of applications.
Technical Data
Downloads
