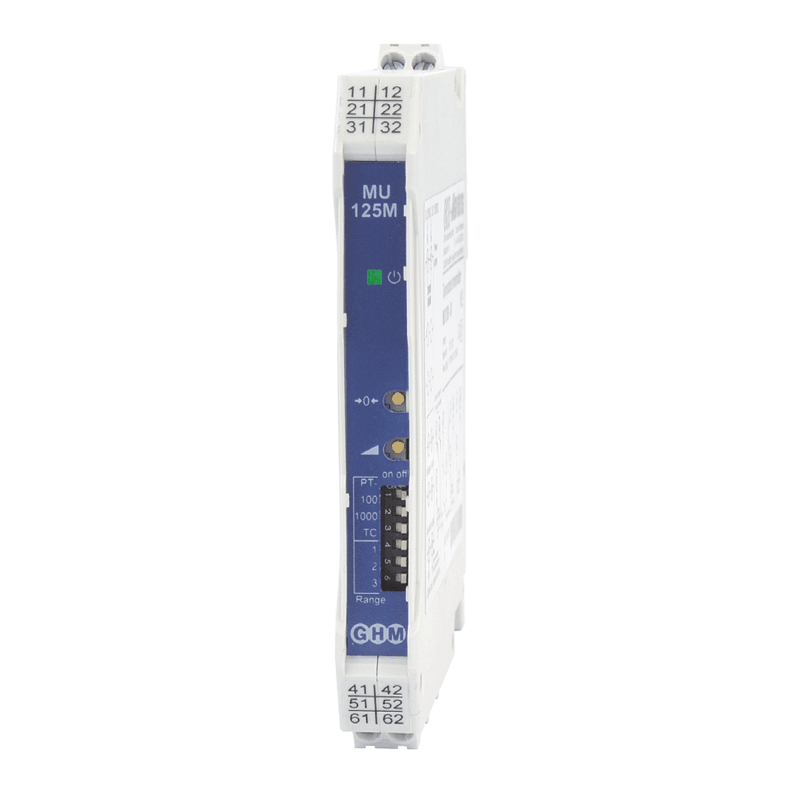

Temperature Transducer MU125

Thermoelements J, K, S
Pt100 / Pt1000 / NTC resistance measurement
4..20 mA analogue output
Universal input for Pt100, Pt1000, thermocouple, NTC and resistance measurement value
Configuration via front DIP switches
Analog actual value output 4 .. 20mA
Zero point and limit value can be adjusted via trim potentiometers on the front
Wide-range mains adapter or 24 V DCa
Optional supply via carrier rail bus
Removable coded screw terminals or optional push-in terminals
Housing width 12.5 mm
Carrier rail mounting TS35 EN60715

£0.00 In Stock Sold out

Description
Downloads

Description

Devices of the MU125 series convert a temperature measurement value or resistance measurement value from various sensors to a current signal of 4..20mA. The universal configurability of the measuring inputs reduces the stock requirement for various applications. The housing width of only 12.5 mm enables space-saving installation in the switch cabinet.

Thermoelements J, K, S
Pt100 / Pt1000 / NTC
resistance measurement
4..20 mA analogue output
Universal input for Pt100, Pt1000, thermocouple, NTC and resistance measurement value
Configuration via front DIP switches
Analog actual value output 4 .. 20mA
Zero point and limit value can be adjusted via trim potentiometers on the front
Wide-range mains adapter or 24 V DCa
Optional supply via carrier rail bus
Removable coded screw terminals or optional push-in terminals

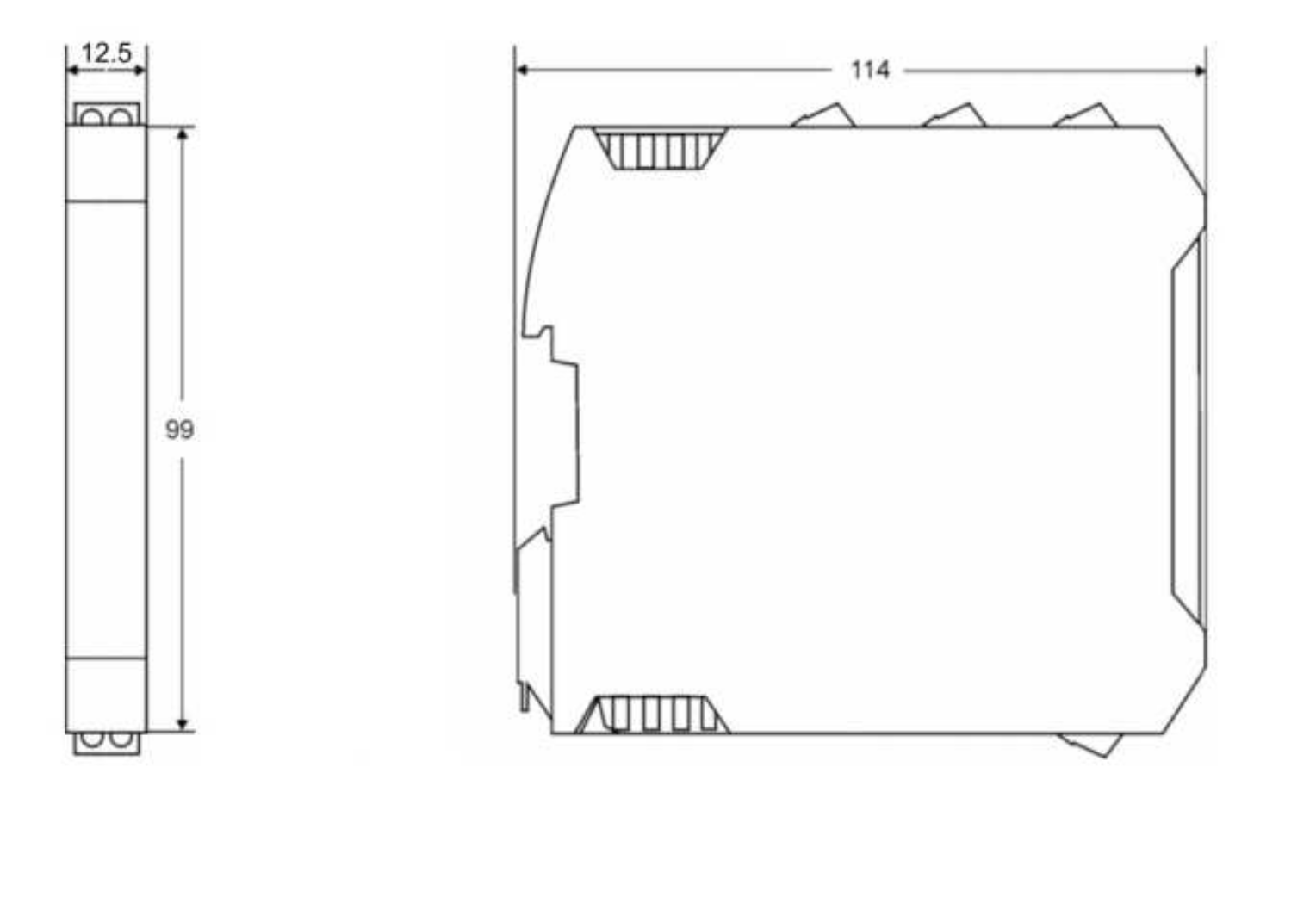

Housing width 12.5 mm
Carrier rail mounting TS35 EN60715
