Martens

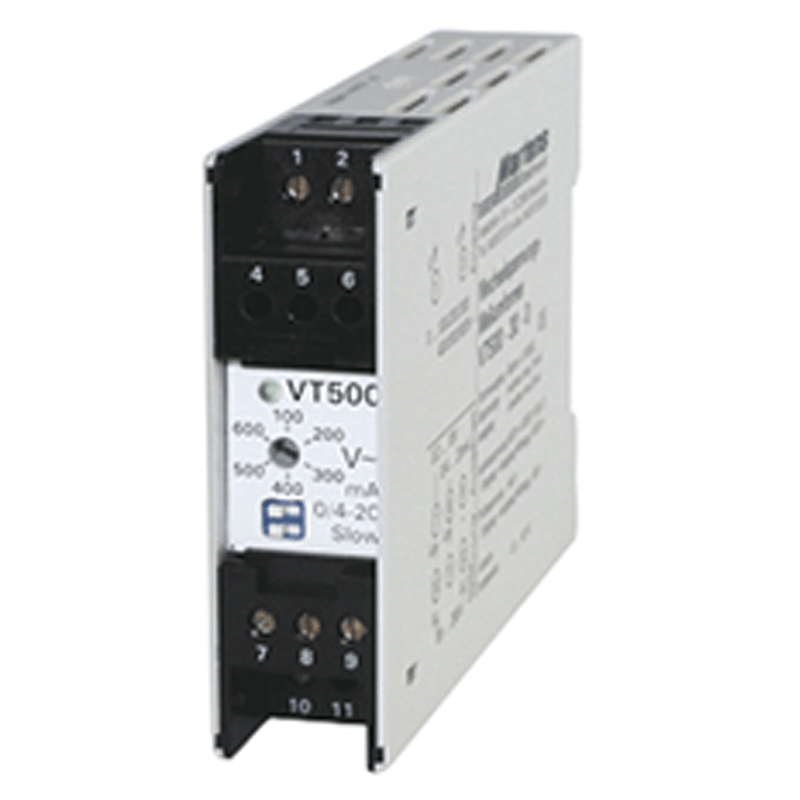

AC Voltage-Transmitter VT 500
- Switch-selectable inputs 0/4...20mA and 0/2...10V or -20 ... 20mA and -10 ... 10V
- Switch-selectable outputs 0/4...20mA and 0/2...10V or -20 ... 20mA and -10 ... 10V
- Increasing or decreasing output characteristic
- Supply voltage 230V AC or 24V DC
- Full 3-port isolation
- Power-on LED
- 22.5mm case for DIN rail mounting
- UL-CSA-standard on request
£0.00
In Stock
Sold out
- Description
- Downloads
Description
To this transmitter AC voltages can be connected in 6 different measuring ranges. The selection of the measuring range is done via a front side switch.
The device converts true r.m.s. voltage measuring values of all types of waveforms into industry standard signals for process control systems.
