Martens

Universal Transducer UT125

  • Thermoelements J, K, S
  • Pt100 Elements
  • 0/2..10 V und 0/4..20 mA
  • 4..20 mA analogue output
  • Transmitter for electrical signals
  • Universal input for standard signals, Pt100, thermocouple, potentiometer
  • Configuration via front-side DIP switch
  • Wide-range power supply or 24 V DC

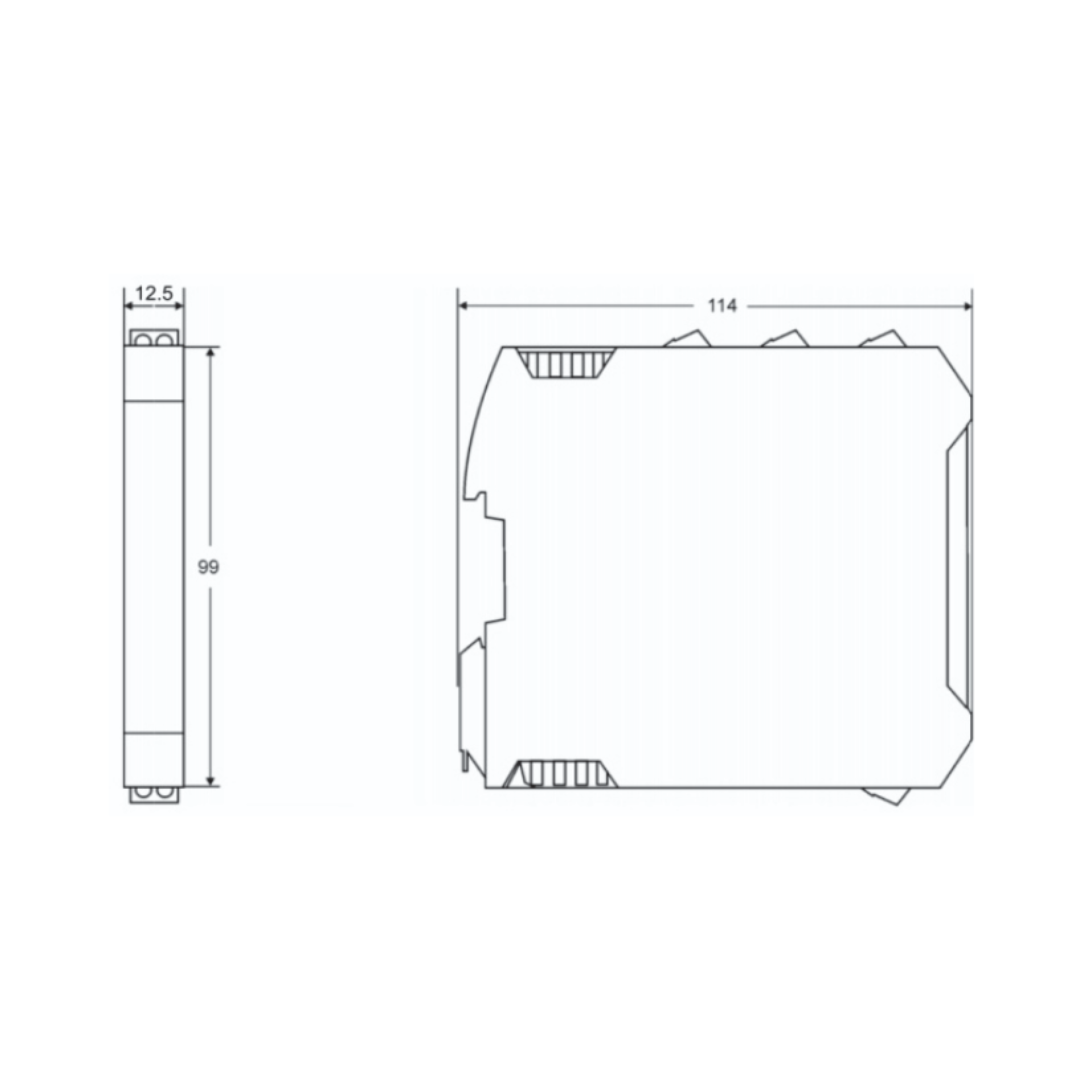

  • Housing width 12.5 mm
  • Removal coded screw terminals
  • Carrier rail mounting TS35 EN60715
£0.00 In Stock Sold out

The UT125 series of universal transmitters are designed for the affordable transformation of standard signals, temperatures and potentiometer statuses into a current signal of 4..20 mA. The universal configurability of the measuring inputs reduces the stock requirement for various applications. The measuring inputs and actual value output are not galvanically isolated. The housing width of only 12.5 mm enables space-saving installation in the switch cabinet.

  • Thermoelements J, K, S
  • Pt100 Elements
  • 0/2..10 V und 0/4..20 mA
  • 4..20 mA analogue output
  • Transmitter for electrical signals
  • Universal input for standard signals, Pt100, thermocouple, potentiometer
  • Configuration via front-side DIP switch
  • Wide-range power supply or 24 V DC
  • Housing width 12.5 mm
  • Removal coded screw terminals
  • Carrier rail mounting TS35 EN60715
