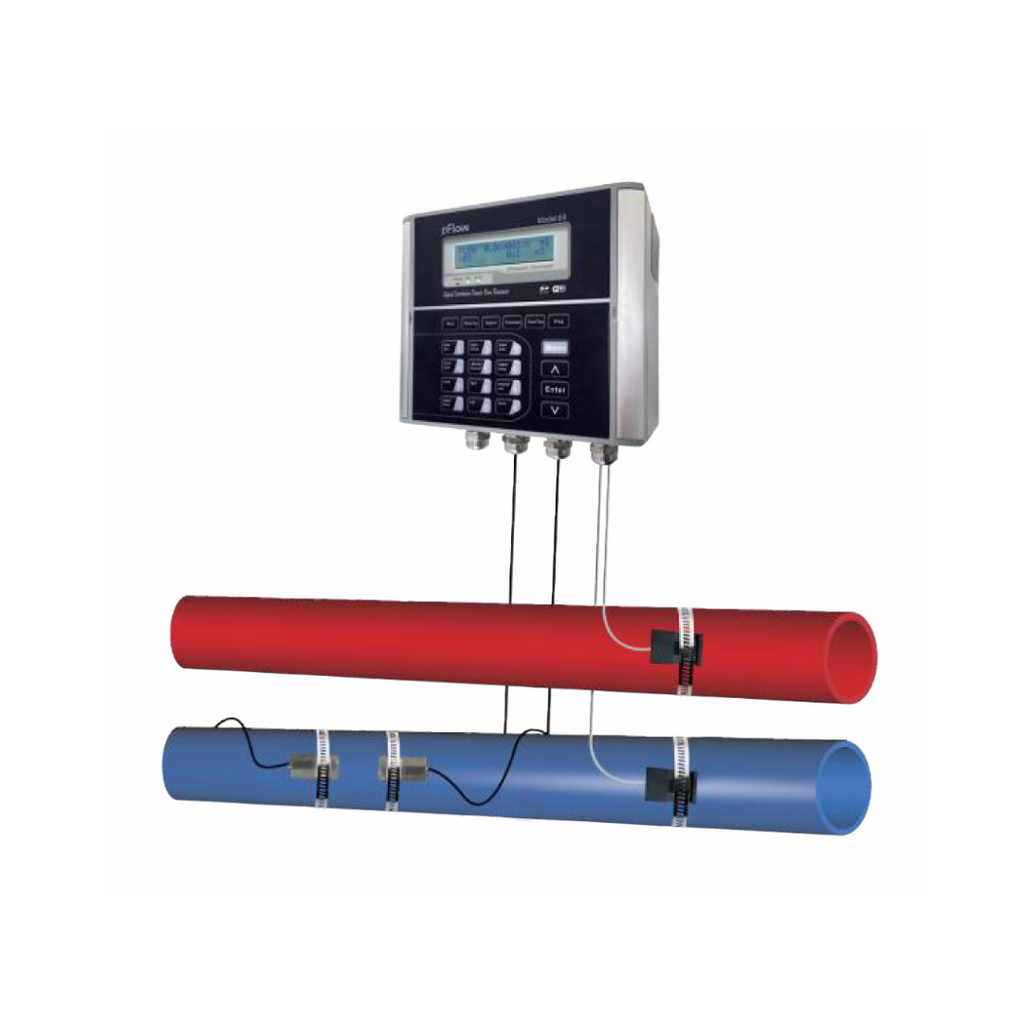

Ultrasonic Energy Meter E8

The Ultrasonic Energy Meter E8 is a cutting-edge transit time ultrasonic flow meter designed with the latest digital technology for precisely measuring liquid flow in full-pipe systems. Featuring a low-voltage broadband pulse transmission, the E8 series is optimised for clean liquid applications but also performs well with liquids containing small amounts of air bubbles or suspended solids, making it versatile for industrial environments.

This meter provides highly accurate flow readings with an accuracy of ±0.5% and energy measurement accuracy of ±2%, handling flow velocities from ±0.03 ft/s to 40 ft/s (±0.01 m/s to 12 m/s) in pipes ranging from 1" to 200" (25 mm to 5000 mm) in diameter. Designed for robust industrial use, the E8 is compatible with a wide range of pipe materials such as carbon steel, PVC, stainless steel, and more.

Its durable die-cast aluminium transmitter and encapsulated transducer are rated IP65 and IP68, respectively, ensuring protection in harsh conditions. The meter supports multiple output options, including analogue, pulse, and relay, with advanced connectivity via WiFi, RS232, and RS485 interfaces. With temperature resistance and energy-saving capabilities, the E8 is ideal for HVAC systems, energy audits, and building automation.
