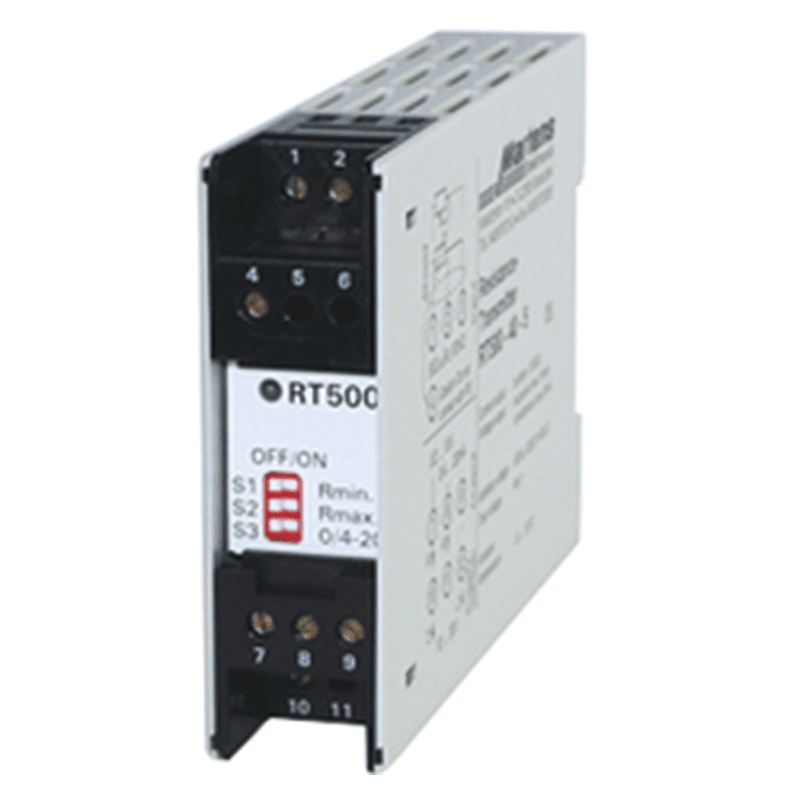

Resistance-Transmitter RT 500

Login to see prices In Stock Sold out

RT500 transmitter converts a resistance- or potentiometer signal into industry standard signals. Initial and final value may be in the range of 0..100 kOhm. Easy programming by means of Teach-in.

The measuring range will be selected automatically. The input circuit is designed in 3-wire technology and can provide compensation of the line resistance. The linear output signal is generated between minimum and maximum input resistance.

  • Measuring range 0..50 Ω up to 100 kΩ
  • Processor technology with 12 Bit AD/DA-converter
  • Teach-in programming for start- and end-value
  • Increase or decrease output characteristic programmable
  • Operation mode indicated by use of a 2-color LED

Technical DatasheetResistance-Transmitter RT 500 Technical Datasheet

ManualResistance-Transmitter RT 500 Manual
