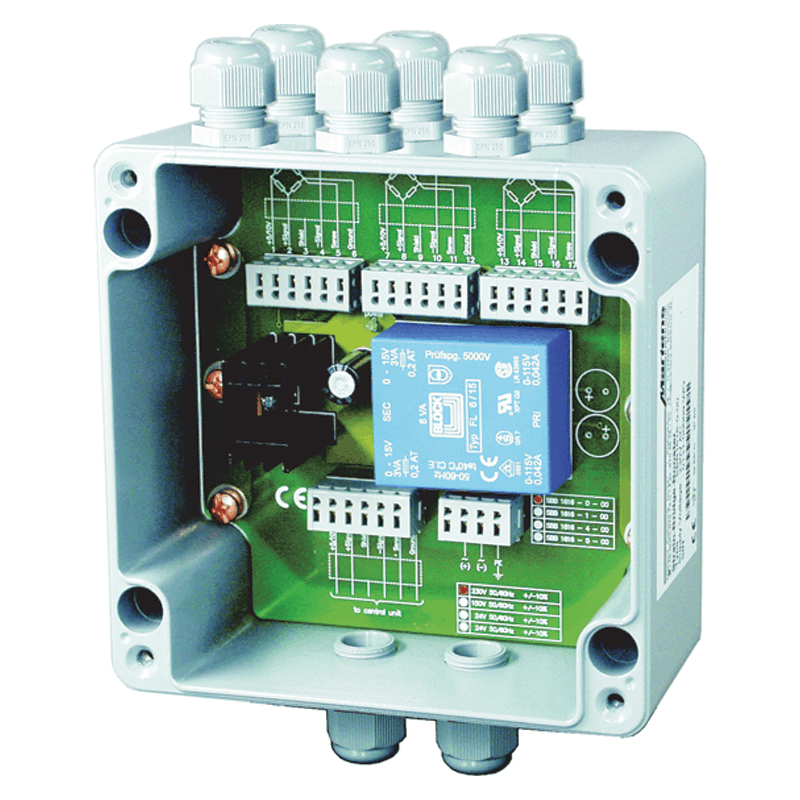

DMS-Bridge-Amplifier SBB 1616

  • Bridge supply 2..10 V
  • max. 6 DMS strain bridge sensors ≥ 300 Ω at 10 V
  • Output current 200 mA max.
  • Line compensation up to 1 V
  • Protection class IP65
£0.00 In Stock Sold out

Strain-Bridge-Amplifier SBB 1616 will be used if more than one strain bridge sensor (DMS sensor) is necessary. The device can supply max. 6 DMS sensors. The total force or weight, results from the sum of single loads or weights. It must be ensured, that all used DMS sensors have the same measuring range and sensitivity (mV/V). Tolerance-conditioned differences in sensitivities are considered, by operating with the arithmetic average value of the used DMS sensors.
