EUROSWITCH

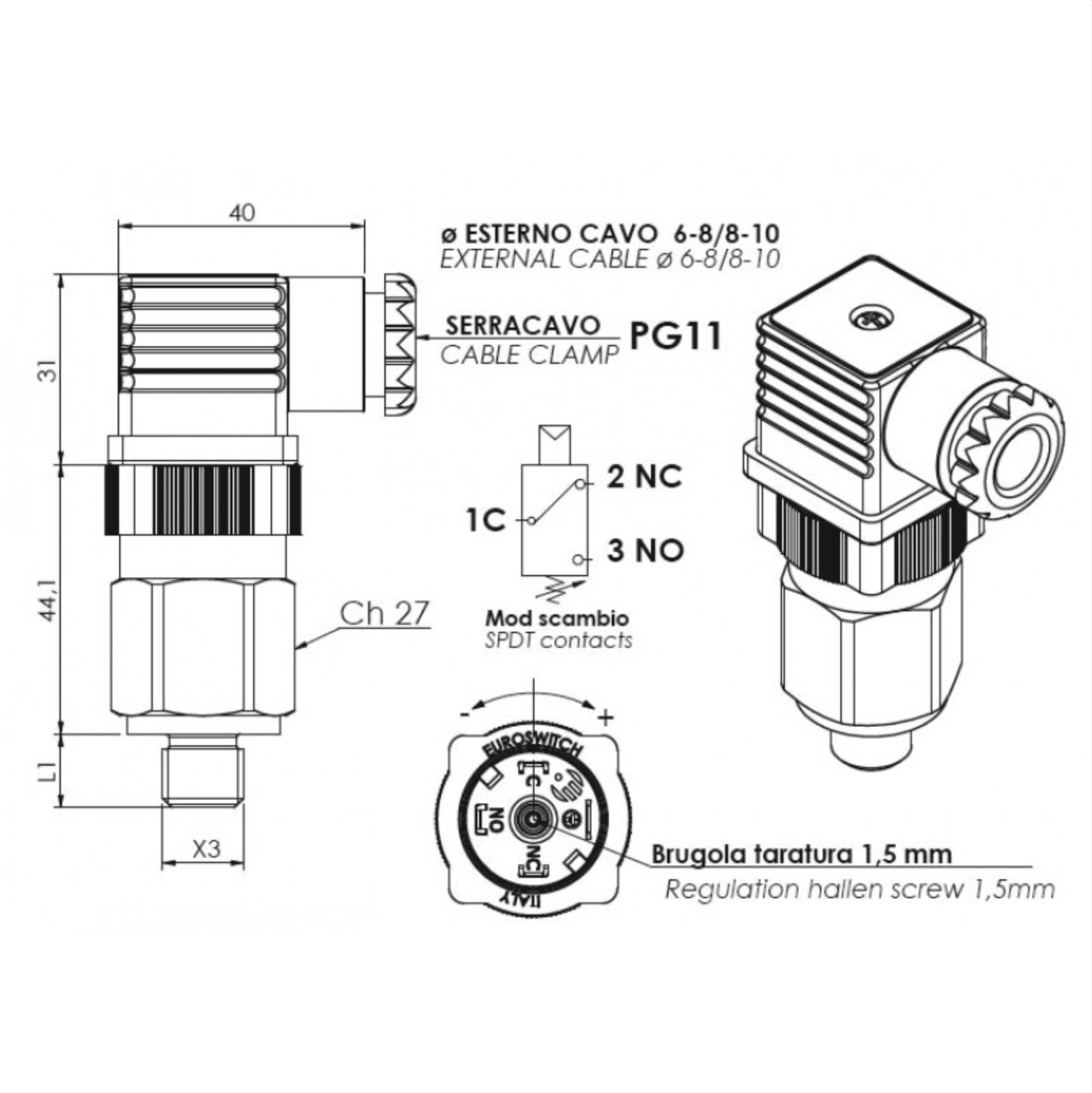

Model 48 Pressure Switch

  • Piston Pressure Switch ≤ 250V
  • SPDT C/O Contacts
  • Up to 400 bar adjustment ranges
  • Over-pressures up to 900 bar
  • Max working pressures up to 450 bar
  • 1/4” BSP thread (others available)
  • NBR+Teflon piston seal
  • ATEX option available
£0.00 In Stock Sold out
The Model 48 Pressure Switch is a piston-style pressure switch with changeover contacts (SPDT), perfect for adjustable switching pressure ranges up to 400 bar. It offers adjustment range options of 50 – 200 bar and 200- 400 bar, making it versatile for a variety of applications. With max working pressures of 450 bar and an overpressure limit of 800 bar, this product can handle intense use. Additionally, the Model 48 Pressure Switch has a max switching voltage of 250 volts and operating temperatures from -10°C to 120°C with a Viton diaphragm.
.
