Sku:
Product Type: Pressure Switch
Vendor: EUROSWITCH

Description

  • Diaphragm Pressure Switch with a Choice of Normally Open or Normally Closed Contacts (SPST)
  • For Adjustable Switching Pressure Ranges up to 50 bar
  • Adjustment Range Options : 0.1 – 1 Bar , 0.2 – 2 Bar, 1 – 5 Bar, 1 – 10 Bar, 10 – 20 Bar, 20 – 50 Bar
  • Max working Pressures of 150 bar
  • Over Pressure Limit 300 bar
  • Max Switching Voltage up to 48 Volts (250v on request)
  • Operating Temperatures -10°C to 120°C with Viton Diaphragm
  • Viton (FKM) Diaphragm as Standard – (Others available e.g Nitrile (NBR) or EPDM)
  • Zinc Plated Steel Standard option (Brass or Stainless Steel Options)
  • 1/4″ BSP Parallel Female Thread Standard ( Others Available)

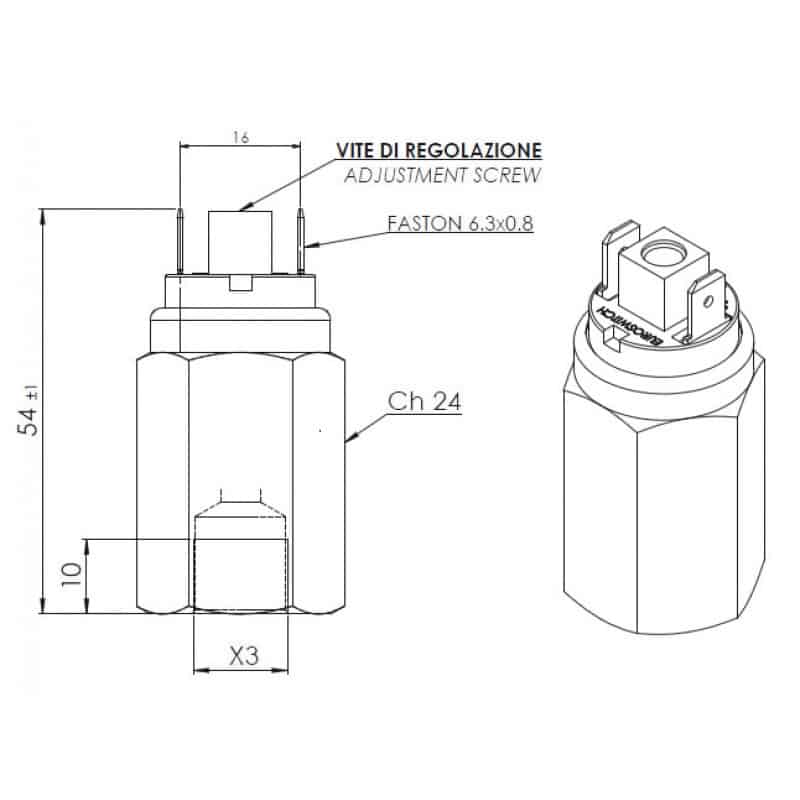

Technical Datasheet

Downloads

Technical DatasheetModel 42 Datasheet
