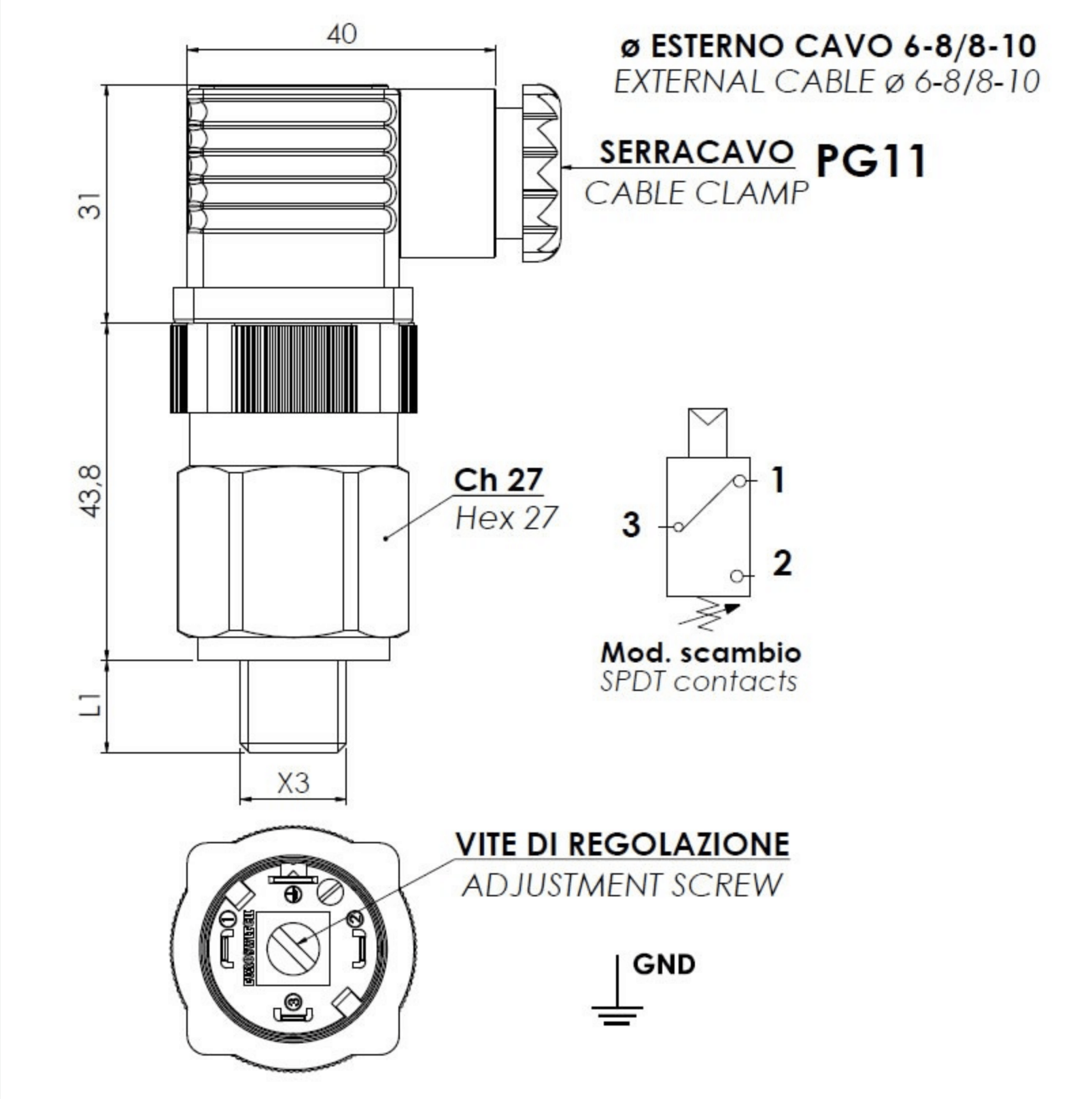

model_27_dims
model_27_pressure_switch
model_27_dims
Euroswitch

Model 27N/28N Pressure Switch

  • Pressure Switch ≤ 250V
  • SPDT C/O Contacts
  • Up to 300 bar adjustment ranges
  • Over-pressures up to 800 bar
  • Max working pressures up to 450 bar
  • 1/4” BSP thread (others available)
  • Viton / NBR+Teflon Seal (Model 28N)
  • Adjustable Hysterisis (10-50%)
£0.00 In Stock Sold out
Looking for a pressure switch that can handle a wide range of applications? Look no further than the Model 27N/28N. This versatile switch can be adjusted to fit your specific needs, with pressure ranges from 0.3 – 1.5 bar all the way up to 100 – 400 bar. Plus, it features hysteresis adjustment options of 30 – 50%, so you can get exactly the performance you need. The durable zinc plated steel construction is built to withstand even the harshest environments, and with a max switching voltage of 250 volts, this switch is ready for anything.
.
.
