Dinel

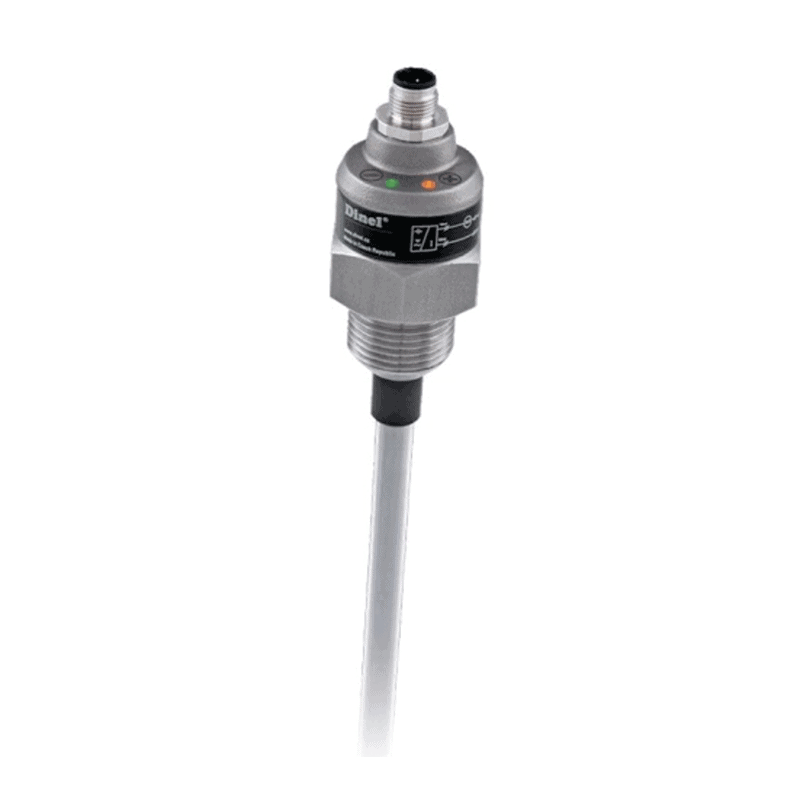

DLS-35 Capacitive Limit Switch

£0.00 In Stock Sold out

ORDER BY 1:00PM NEXT DAY DELIVERY DEPENDING ON STOCK

WE STOCK 100% QUALITY PRODUCTS

QUALITY GUARANTEE AND EASY RETURNS

Description

  • Direct mounting into various containers, silos, vessels, tanks, filling inlets, reservoirs, etc.
  • Increased resistance to electromagnetic interference
  • Simply sensitivity setting by means of magnetic pen
  • Mode for quick setting of the sensor without the presence of medium
  • LED state and function indication
  • Wide choice of electric connection via connectors, cable glands, or protective conductor
  • Material of housing and electrode from stainless steel
  • High stability at high sensitivity (can be used for material with Ɛr ≥ 1,3)
  • Xi, XiT versions for usage in explosive areas, or XiM, XiMT versions for mining environments with a risk of hazard by methane or coal dust

Technical Datasheet

Downloads

Technical DatasheetDLS-35 Limit Switch
