Product Type: Two Level Control Valve
Vendor: Balem

Description

  • Wide range high and low water level control (Max.900 mm).
  • Perfect shutoff by ball valve with a float.
  • Mechanical On/Off type.
  • Anti-corrosion and heat resistant materials ensure a long life span.
  • Easy to install and maintain.
  • Operates totally independent from any external power source.

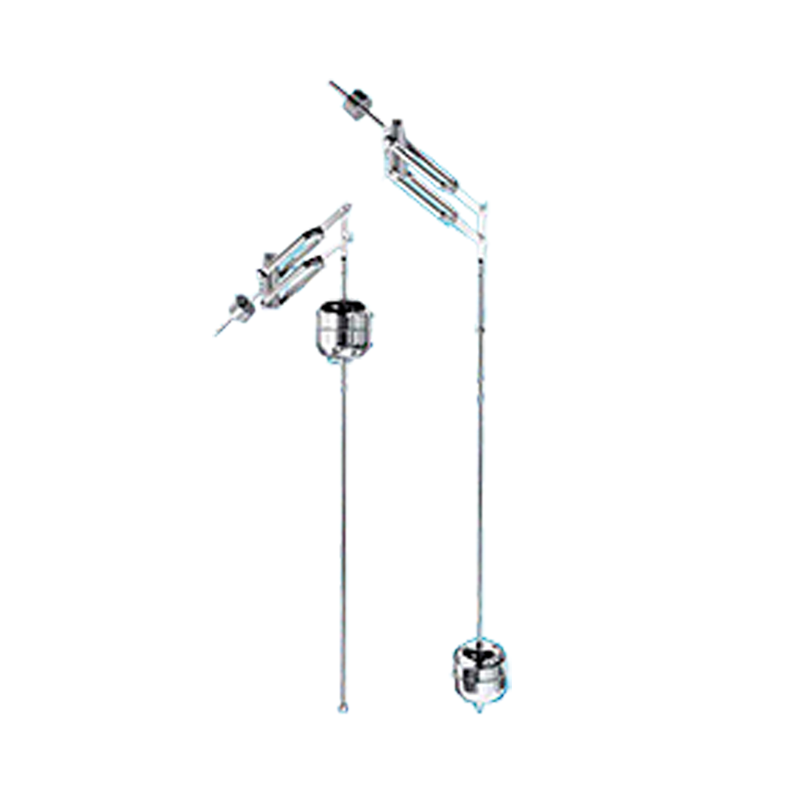

Two Level Control Valve (BALEM 511) is a mechanical On/Off level control valve with a float, which controls water level between upper and low limits (adjustable from Min. 300mm to Max. 900mm). The valve was designed to use as a pilot valve for PISTEK Valve(BALEM 431) or BESCON Valve(BALEM 441), but can be used independently to control water levels in a small water tank / reservoir.

Refer to the standard piping diagram(Fig-1) when installing the valve for an independent use. Refer to the piping diagram(Fig-2) when installing the valve as a pilot valve for a bigger valve. The level control range can be adjusted as required easily using the stopper screws provided.

Technical Datasheet

Downloads

Technical DatasheetTechnical Datasheet
