Orion
Ogauge
- IIoT capability
- Analogue output signal configurable
- Protection Class: IP 66
- Can be paired to mobile via an app to check live pressures
- Accuracy 0.25% standard (finer accuracies are available)
- Full-colour OLED informative display
- Description
- Downloads
- Product Catalogue
Description

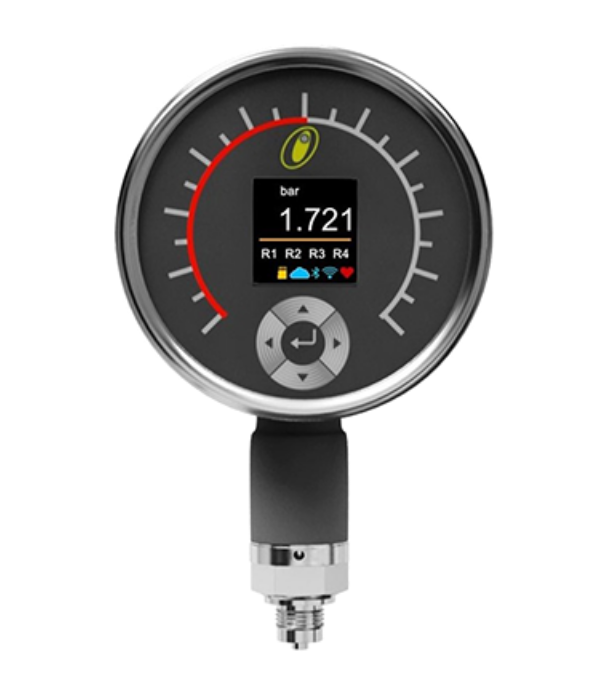

Ogauge is a new device combining several instrumentation functions in one single device. It is an IIoT pressure gauge, switch, transmitter, and data logger.
With a fully coloured OLED display and four switching outputs, the Ogauge offers the user all the advantages of a modern electronic pressure switch, gauge and transmitter.
The onboard capacitive touch keypad can independently adjust four switching points and switch-back points. Programming is also possible through a mobile app. An authorised person can remotely set these from a cloud-based dashboard.
Typical Applications:
- Hydraulic presses
- Lubricating Pressure in rotating machines
- Liquid level in open tanks
- As test gauges
- Monitor pump discharge pressure
