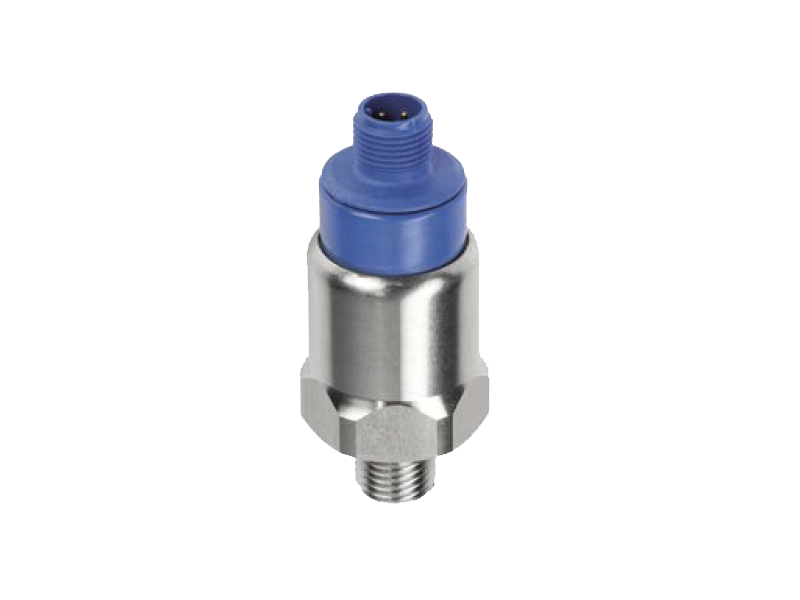

ESP1 Pressure Transmitter

ESP1 Pressure Transmitter

  • Sensor: Ceramic Element
  • Response Time: ≤ 4 ms
  • Tightening Torque: 30 Nm
  • Protection Degree: IP 67
  • Supply Voltage: 8÷30 Vdc
  • Current Consumption: ≤ 25 mA
  • Temperature Ranges: 0÷80°C, -20÷80°C
  • Life expectancy: > 10 million cycles
  • Weight: 86g
£0.00 In Stock Sold out

ESP1 Pressure Transmitter - With its cutting-edge features and reliable performance, this sensor is designed to deliver exceptional accuracy and efficiency in a compact design.

The ESP1 Pressure Transmitter is equipped with a robust ceramic element that ensures superior precision in measuring pressure. With an impressive accuracy level of ≤ +/- 0.5% Span and a maximum deviation of ≤ +/- 1% Span, you can rely on this transmitter for precise readings every time.

The ESP1 Pressure Transmitter offers excellent non-linearity, hysteresis, and repeatability, ensuring consistent and reliable results. Its lightning-fast response time of ≤ 4 ms guarantees real-time data acquisition, enabling you to swiftly monitor and respond to pressure changes.

The ESP1 Pressure Transmitter boasts remarkable thermal stability, with a thermal drift of ≤ 1.5% over a range of 10 to 50°C (Span) and ≤ 2% over a range of 0 to 80°C (Span). This ensures accurate measurements even in challenging environments.

Crafted with top-quality materials, including FPM, PA 66, Ceramic, and AISI 316, the wetted parts of this transmitter offer excellent resistance to corrosion and harsh substances. With an IP67 protection degree, it can withstand dust and water ingress, making it ideal for demanding industrial settings.

Installation is a breeze with the ESP1 Pressure Transmitter, thanks to its recommended tightening torque of 30 Nm. Operating within a supply voltage range of 8 to 30 Vdc, it consumes minimal current, with a maximum consumption of ≤ 25 mA.

With a wide compensated temperature range of 0 to 80°C and a storage range of -20 to 80°C, the ESP1 Pressure Transmitter is versatile enough to adapt to various operating conditions. Its long life expectancy of over 10 million cycles ensures durability and reliability for extended use.

Weighing around 86g, this compact and lightweight transmitter is a perfect fit for space-constrained applications without compromising performance.
