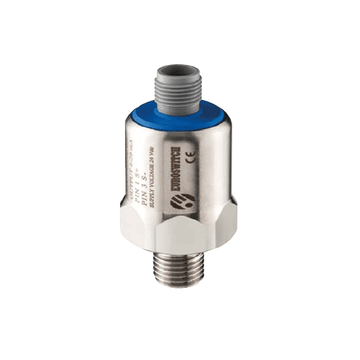

ELECTRONIC EVOLUTION

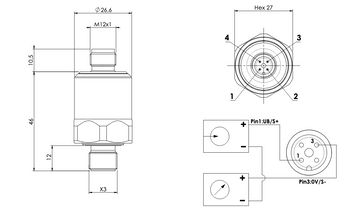

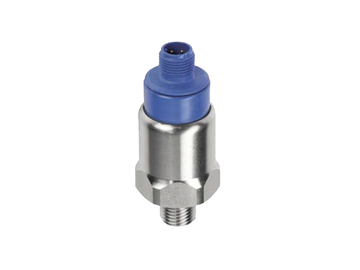

- Electronic Pressure Transducer
- 4-20mA transducer
- 0-400 bar measuring ranges
- Over-pressures up to 650 bar
- M12 electrical connector
- 1/4” BSP standard thread
- 316L stainless steel
 |
ESP Technical Datasheet |
- Use: Water - Mineral oils - Diesel fuel - Petrol
- Fixing: 1" gas AISI 304 (stainless steel on request)
- Output signals: 4-20 mA ANALOG
|
Technical Datasheet |

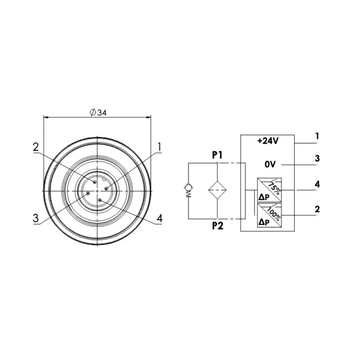

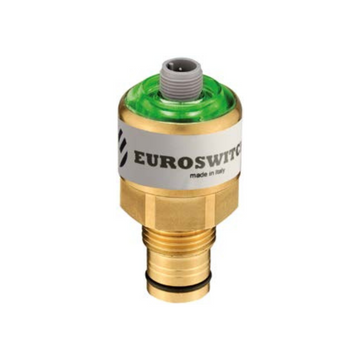

- Differential pressure range: 2-8 bar
- High-pressure tolerance: 350-450 bar
- Protection degree: IP67 certified
- Quick response time: 0.5 seconds
- Connector type: M12 x 5 PIN
|
Technical Datasheet |

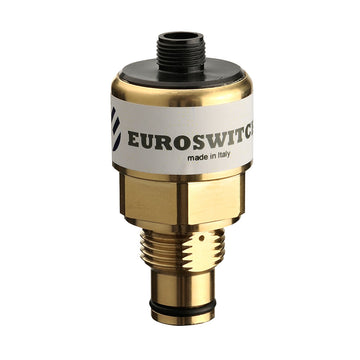

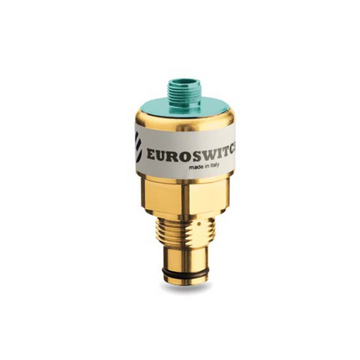

- Differential pressure indicator
- High-accuracy thermal drift control
- Wide range: 2 to 8 bar
- Fast 0.4s response time
- IP67-rated, robust brass body
|
Technical Datasheet |
- Medium: Oil -Air
- Case: Brass (AISI on request)
- Working temperature range: -20°C ÷ +80°C
- Measuring ranges (Differential pressure): 2 ÷10 bar
- Max working pressure: 350 ÷ 450 bar (350 UL CSA version) depending on the thread
- Thread: 1/2” Gas (others on request)
- Tightening torque: 50-70 Nm
- Connector: M12 x 5 PIN
- Protection degree: IP67
- Weight ~ 140 g

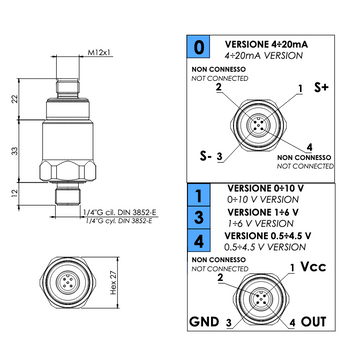

- Sensor: Ceramic Element
- Response Time: ≤ 4 ms
- Tightening Torque: 30 Nm
- Protection Degree: IP 67
- Supply Voltage: 8÷30 Vdc
- Current Consumption: ≤ 25 mA
- Temperature Ranges: 0÷80°C, -20÷80°C
- Life expectancy: > 10 million cycles
- Weight: 86g
|
Technical Datasheet |

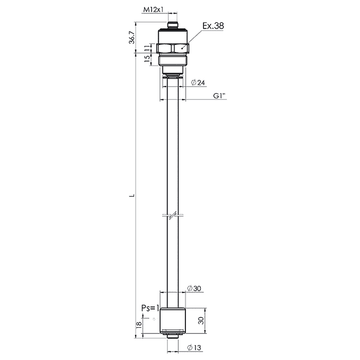

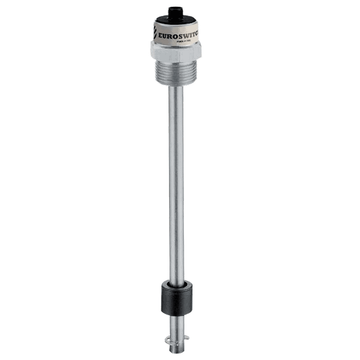

- Output signal: IO-Link
- Supply voltage: 24±10%
- Case: AISI 316
- Working temperature: -20 / +95° C
- Protection degree: IP65 / IP67
- Electrical connection: M12
- Temperature output signal: analogic 4-20mA (+/-1°C)
- Supply voltage: 24 V +/- 10%
- Float: NBR
- Working temperature: -25 / +95° C
- Protection degree: IP65 / IP67
- Output signal: analogic 4-20mA
- Supply voltage: 8-30V
- Case: AISI 316
- Working temperature: -20 / +95° C
- Protection degree: IP65 / IP67
- Electrical connection: M12
- Max Torque: 50 Nm
- Operating temperature (-5°C to +45°C)
- Storage temperature (-25°C to +50°C)
- Protection degree IP20
- Kit weight 270 g
- Dimensions of ABS crate 112x62x32mm WxHxD
|

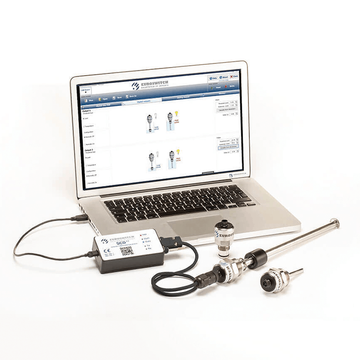

SCD 4.0 Sensor Configuration Device |
|
SCD 4.0 Manual |
