SOBA EP Float Level Switch

Allowed fluid densities: 0,70 à 1,15 g/cm³
Electric characteristics: 12,24,48 VCA /VCC - 250 VCA - 50/60 Hz
Cut-out power: 16 (6) A Maximum pressure: 3,5 bars
Maximum temperature: 85 °C
Protection index: IP 68

Description
Downloads
Product Catalogue

Description

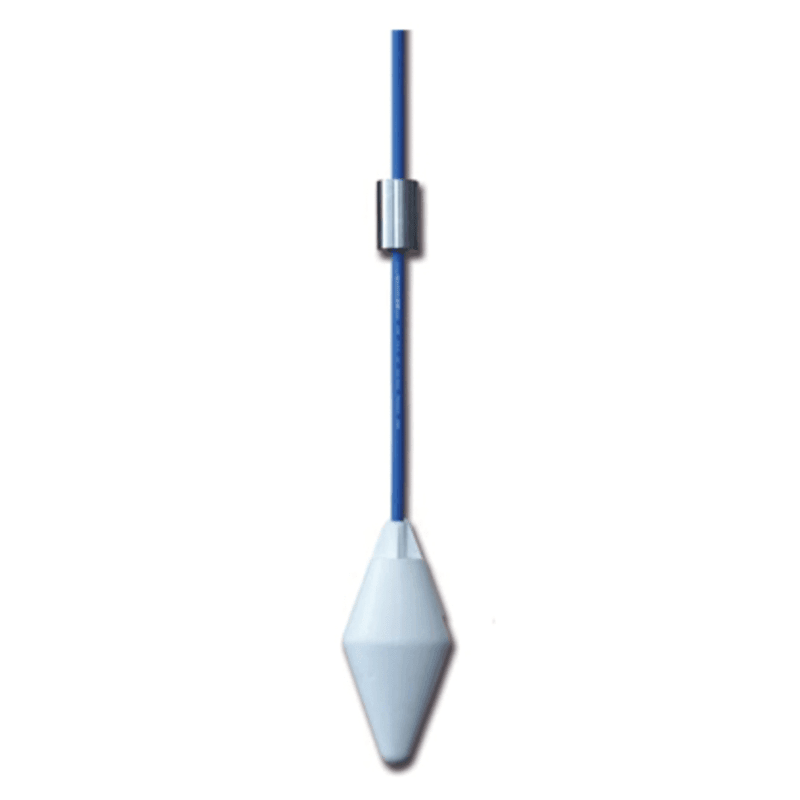

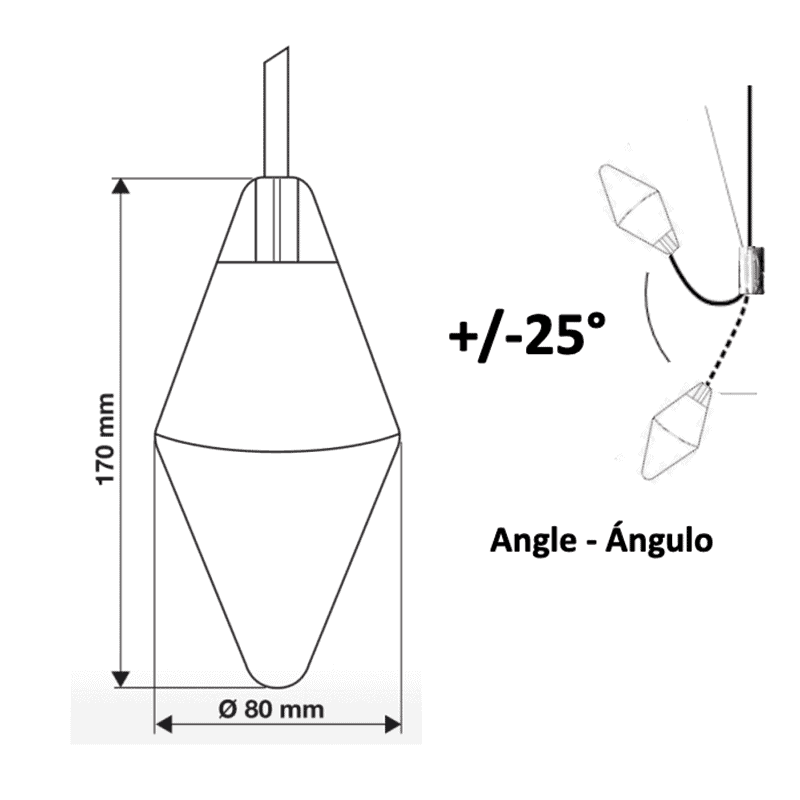

The SOBA EP is an ACS certified float level switch constructed with special components for use in drinking water applications. As the liquid level reaches the unit, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel. The SOBA EP is equipped with a stainless steel (AISI 316L) adjustable ballast, and ensures a very precise level measurement thanks to its +-/ 25º switching angle.
