TF1 Temperature Switch
- 40°C-120°C Set Points (10° increments)
- Max temperature 140°C
- Switch rating up to 250V
- 1/2” or 3/4” BSP thread
- Brass or stainless construction
- Rated to 100 bar
- Description
- Downloads

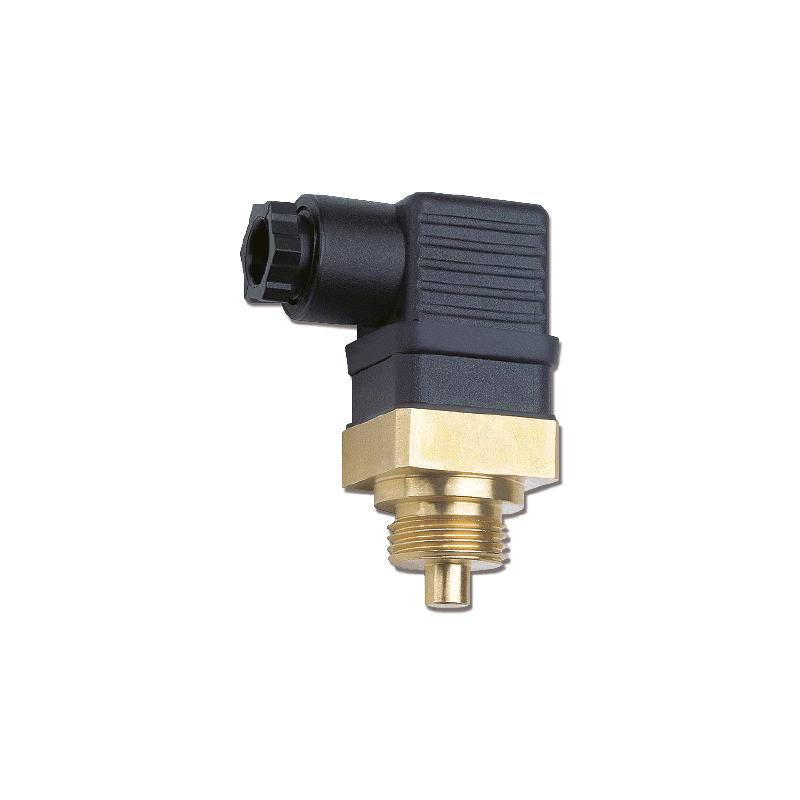

The TF1 Temperature Controller from Honsberg Instruments GmbH is a compact, rugged bimetal thermostat designed to monitor and control temperature in industrial systems. Ideal for applications involving water, oils, or gases, the TF1 features a fully potted switching element for high reliability and durability.
The TF1 supports switching temperatures from +40°C to +120°C in 10°C increments, with hysteresis between 10–20 K. It is available with normally open (n.o.) or normally closed (n.c.) contacts, and the switching action is triggered during temperature rise at 2 K/min.
With a pressure rating of PN 100 and ingress protection to IP65, it’s built to withstand demanding environments. The device is housed in either brass or stainless steel, with G 1/2 A or G 3/4 A threaded connections, and is rated for up to 250 V AC, 10 A.
