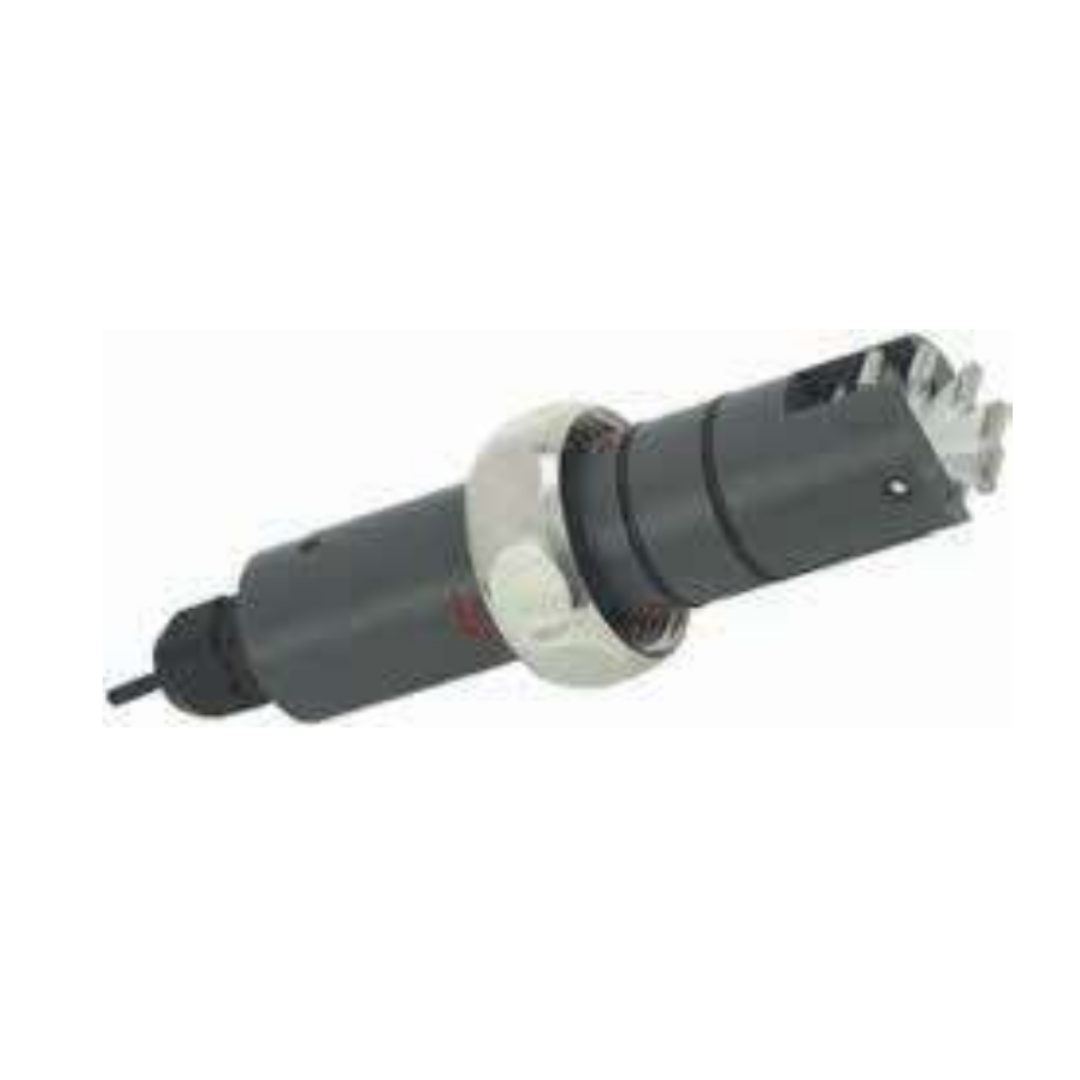

RRI-032RMH Flow Transmitter
- Paddle wheel measuring principle
- Lightweight plastic housing (PVC)
- For pipe sizes DN32 and up
- Output options: PNP, NPN, NAMUR, I, U, F, S
- IP67 protection rating
- Flow range 0.3–6 m/s
- ±1% reproducibility
- Max media temp 60 °C
- PN10 pressure rating
- CE compliant
£0.00
In Stock
Sold out
- Description
- Downloads
Description
The RRI-032RMH is a compact, cost-effective paddle wheel flow transmitter designed for pipe diameters DN32 and above. Engineered for retrofitting in existing systems, it features a corrosion-resistant plastic housing, versatile output options (PNP/NPN, 4–20 mA, 0–10 V, NAMUR, frequency, or limit switch), and supports flow rates from 0.3 to 6 m/s. With a robust IP67 rating, ceramic axis, PVDF rotor, and FKM seals, it offers reliable operation in temperatures up to 60°C and pressures up to PN10. Ideal for water and compatible fluids, it ensures accurate, reproducible measurements and easy integration via M12 connector or 2m cable.
