HONSBERG

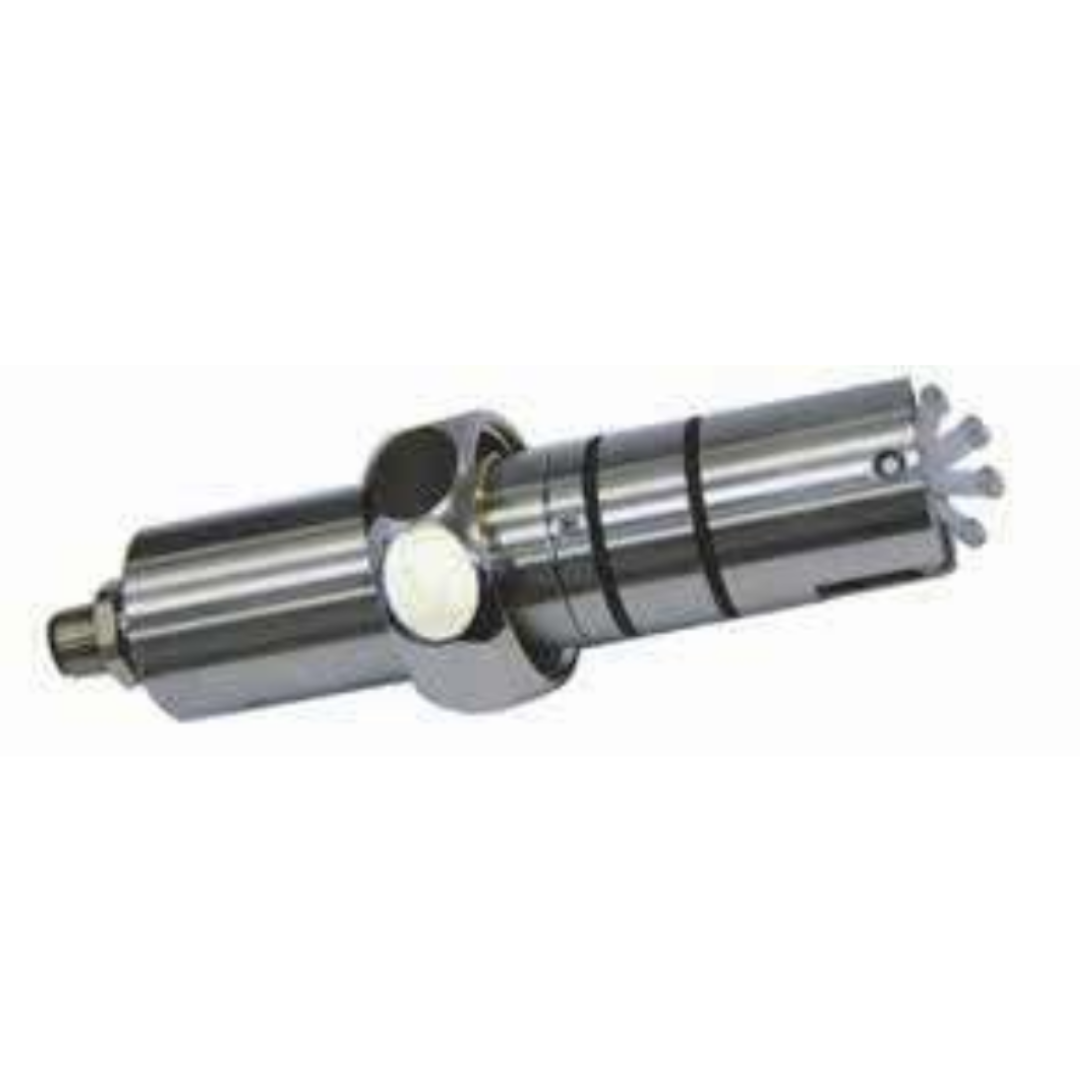

RRH-032RMK Flow Transmitter
- Paddle wheel measuring principle
- Stainless steel housing (1.4305)
- For pipe sizes DN32 and up
- Output options: T, I, U, F, S IP67 protection rating
- Flow range 0.3–6 m/s ±1% reproducibility
- Max media temp up to 95 °C
- PN10 pressure rating
- CE compliant
£0.00
In Stock
Sold out
- Description
- Downloads
Description
The RRH-032RMK Flow Transmitter is a cost-effective, robust solution for monitoring flow in pipelines of DN32 and larger. Featuring a stainless steel body and paddle wheel measuring principle, it offers reliable performance with a measuring range of 0.3–6 m/s. Its modular design supports multiple signal outputs (Push-Pull, 4–20 mA, 0–10 V, frequency, or limit switch), and installation is easy with weld-on nozzles or tapping clamps. Rated IP67 with FKM sealing and ceramic bearings, it withstands up to 10 bar pressure and media temperatures up to 95°C. Ideal for retrofitting and industrial flow applications.
