FX Plastic Flow Switch
- For 15 mm nominal width
- 0.4-12 l/min switching range
- 1/2” male threads
- Integrated filter
- Plastic wetted parts
- Up to 10 bar pressure
- Description
- Downloads

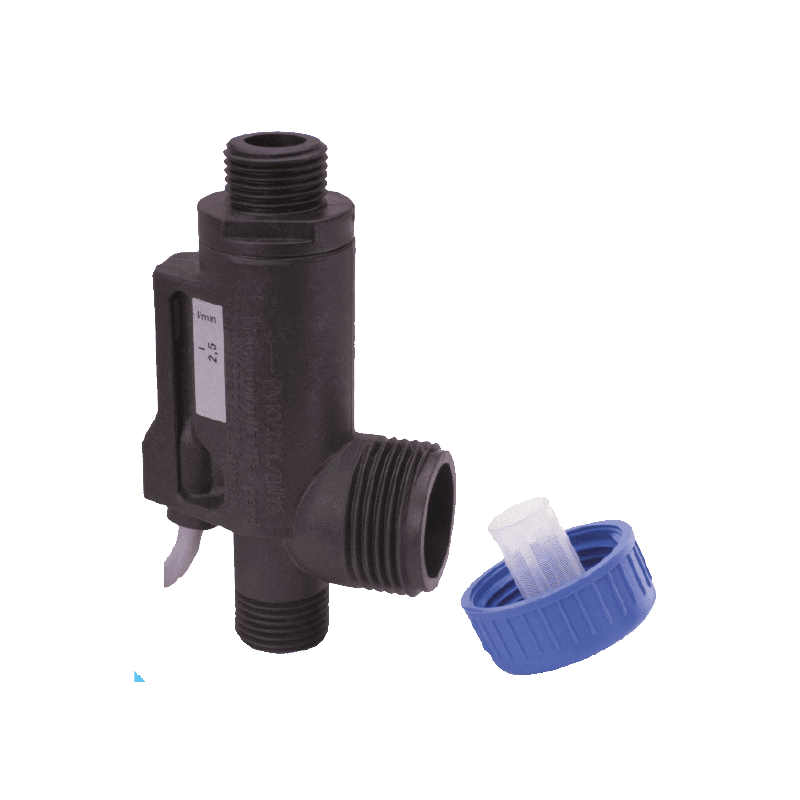

The Honsberg FX Plastic Flow Switch is a compact, cost-effective solution for low-flow applications in systems handling non-corrosive liquids. Designed for 15 mm nominal pipe size with 1/2" BSP male threads, it offers a switching range of 0.4 to 12 l/min, making it ideal for precise flow monitoring in smaller-scale systems.
Engineered with plastic wetted parts, the FX switch is resistant to light chemicals and is well-suited for use in water treatment, cooling systems, and light industrial processes. The integrated filter ensures debris is captured before it can interfere with operation, protecting both the switch and the system it monitors.
With a maximum pressure rating of 10 bar, this flow switch is durable and reliable under standard operating conditions. It features a normally open reed switch, rated for 250 Vac / 10 VA, allowing for straightforward integration into control systems or alarms.
Compact and easy to install, the Honsberg FX Flow Switch offers dependable performance with minimal maintenance—making it an excellent choice for engineers seeking a simple, robust, and economical flow monitoring solution.
