Description

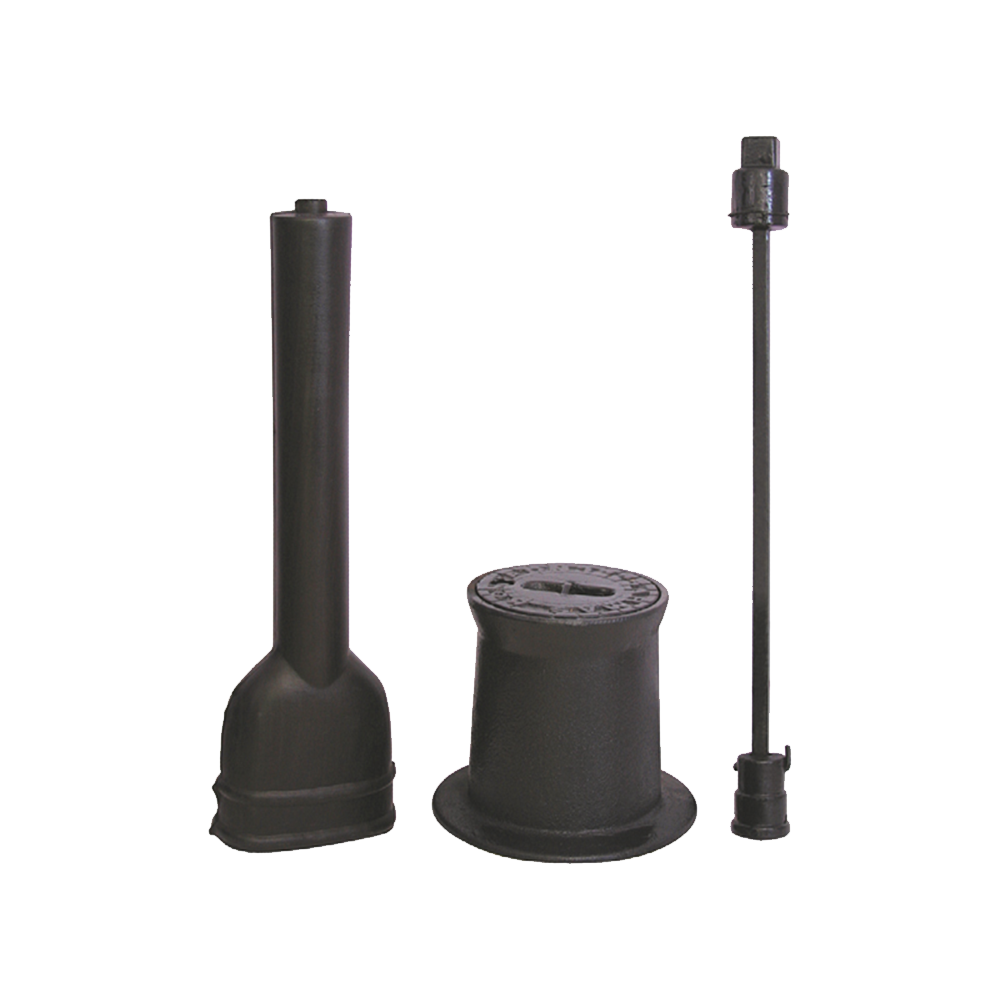

Armas Surface Box is used for the valves which are installed to underground to shut off or shut on. It provides easy operation with low cost.
| DN | Square (K) | D | D1 | H | H1 | H2 | Weight (kg) |
| Ø50-2” | 18 | 160 | 215 | 185 | 530 | 600 | 7,9 |
| Ø65-2½” | 20 | 160 | 215 | 185 | 530 | 600 | 7,9 |
| Ø80-3” | 20 | 160 | 215 | 185 | 530 | 600 | 7,9 |
| Ø100-4” | 20 | 160 | 215 | 185 | 530 | 600 | 7,9 |
| Ø125-5” | 23 | 160 | 215 | 185 | 530 | 540 | 8,2 |
| Ø150-6” | 23 | 160 | 215 | 185 | 530 | 540 | 8,2 |
| Ø200-8” | 23 | 160 | 215 | 185 | 530 | 540 | 8,2 |
| Ø250-10” | 28 | 160 | 215 | 185 | 530 | 540 | 8,2 |
| Ø300-12” | 28 | 160 | 215 | 185 | 530 | 540 | 8,2 |
