EUROSWITCH

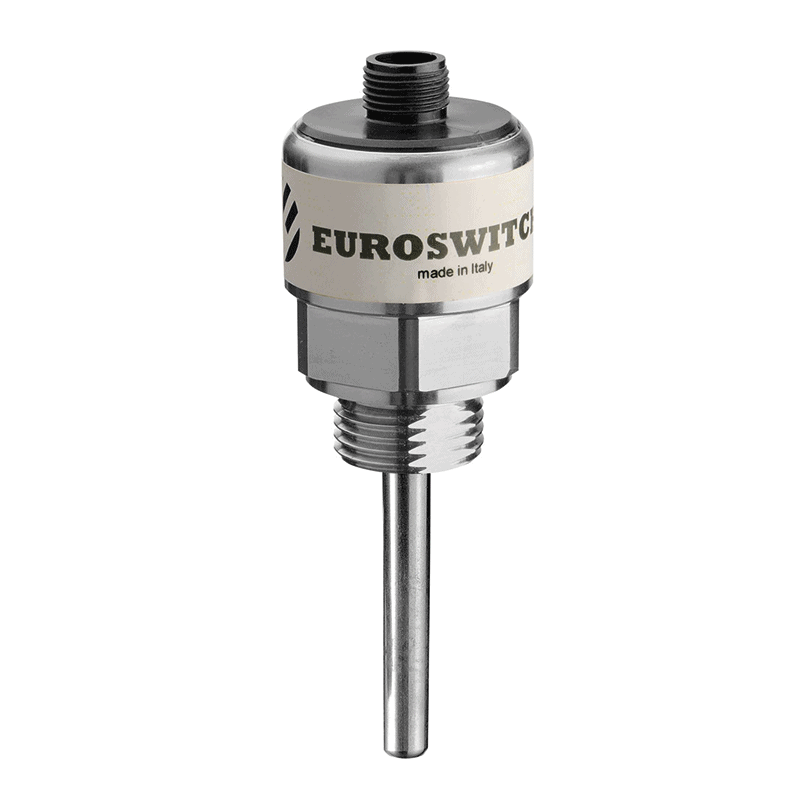

EST Temperature Sensor

  • Output signal: analogic 4-20mA
  • Supply voltage: 8-30V
  • Case: AISI 316
  • Working temperature: -20 / +95° C
  • Protection degree: IP65 / IP67
  • Electrical connection: M12
  • Max Torque: 50 Nm
£0.00 In Stock Sold out

The EST temperature sensor is the perfect tool for professional applications where accuracy and precision are key. With two programmable digital thresholds, it's easy to set up accurate readings, and the 4-20mA analogue output ensures a reliable signal. The M12 electrical connection makes installation a breeze, and the operating temperature range of -20 to +95 degrees Celsius means it can be used in any environment.

Technical Datasheet
