Honsberg

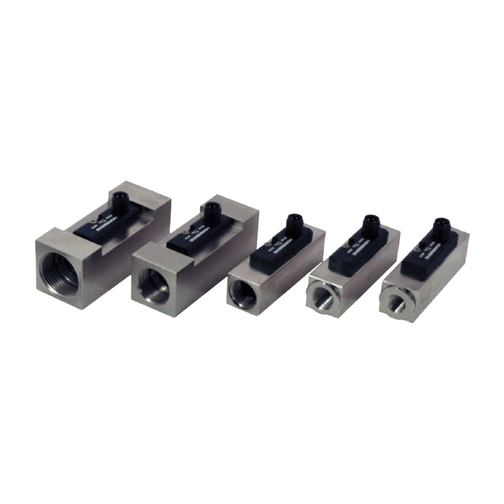

FW1-GM Flow Switch
- Nominal pipe sizes 8-25 mm
- 1 - 11 l/min switching range
- 1/4” - 1” BSP threaded connections
- Not affected by dirt
- Brass connection material
- 230Vac/0.5A reed switch
Description
- 1/4″ – 1″ BSP Threaded Connections
- 1 – 11 l/min Switching Range
- Economical design
- High switching power
- Insensitive to dirt
- Media temperature -20..+90ºC
- Suitable for water (oil on request)
Downloads
FW1 GM Inline Piston Flow Switch Datasheet
