KELCO

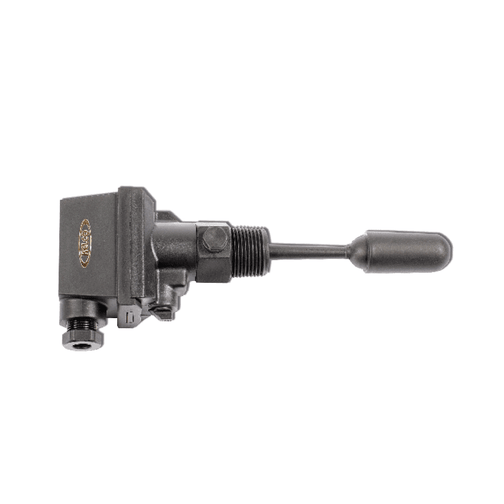

L Series Side Entry Level Switch
- Stainless steel or thermoplastic
- Built in manual override
- 15 Amp 500 volt S.P.D.T switch
- Unique seal-less coupling
- Weatherproof IP67 housing
- Simple to install
- Fully serviceable
- Description
- Downloads
Description
The L Series side entry level switch provides a reliable accurate and low cost solution to tank level control. The switch is available in all thermoplastic construction or in a combination of 316 Stainless Steel and Polypropylene.
The level switch can be supplied with a 500 Volt rated single pole double throw microswitch for general control circuit use or with a S.P.D.T reed switch for low voltage low current applications.
Downloads
L Series Level Switch Datasheet
