KELCO

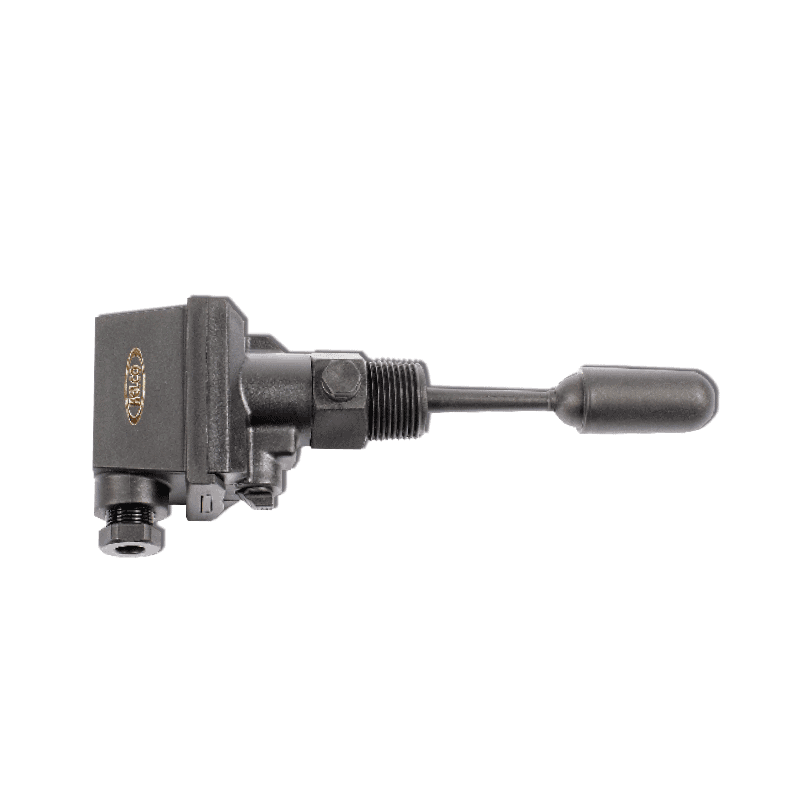

L Series Side Entry Level Switch

  • Stainless steel or thermoplastic
  • Built in manual override
  • 15 Amp 500 volt S.P.D.T switch
  • Unique seal-less coupling
  • Weatherproof IP67 housing
  • Simple to install
  • Fully serviceable
£0.00 In Stock Sold out

The L Series side entry level switch provides a reliable accurate and low cost solution to tank level control. The switch is available in all thermoplastic construction or in a combination of 316 Stainless Steel and Polypropylene.

The level switch can be supplied with a 500 Volt rated single pole double throw microswitch for general control circuit use or with a S.P.D.T reed switch for low voltage low current applications.

The L Series level switch is built tough to give a long reliable service life in the most arduous applications.

  • Stainless steel or thermoplastic
  • Built in manual override
  • 15 Amp 500 volt S.P.D.T switch
  • Unique seal-less coupling
  • Weatherproof IP67 housing
  • Simple to install
  • Fully serviceable
