H&B SENSORS
RTD Sensor (Pt100, Pt1000) with Integral Extension & Thread
- Types: Pt100, Pt1000
- Config: Simplex–Triplex, 2–4 wire
- Accuracy/Certs: DIN classes, ATEX/IECEx/UKEX
- Build: Alu/SS/Plastic heads, various terminations, indicators
- Specs: Threads 1/4"–1", -196°C to +650°C
 |
Technical Datasheet |
£0.00
In Stock
Sold out
- Description
- Downloads
Description

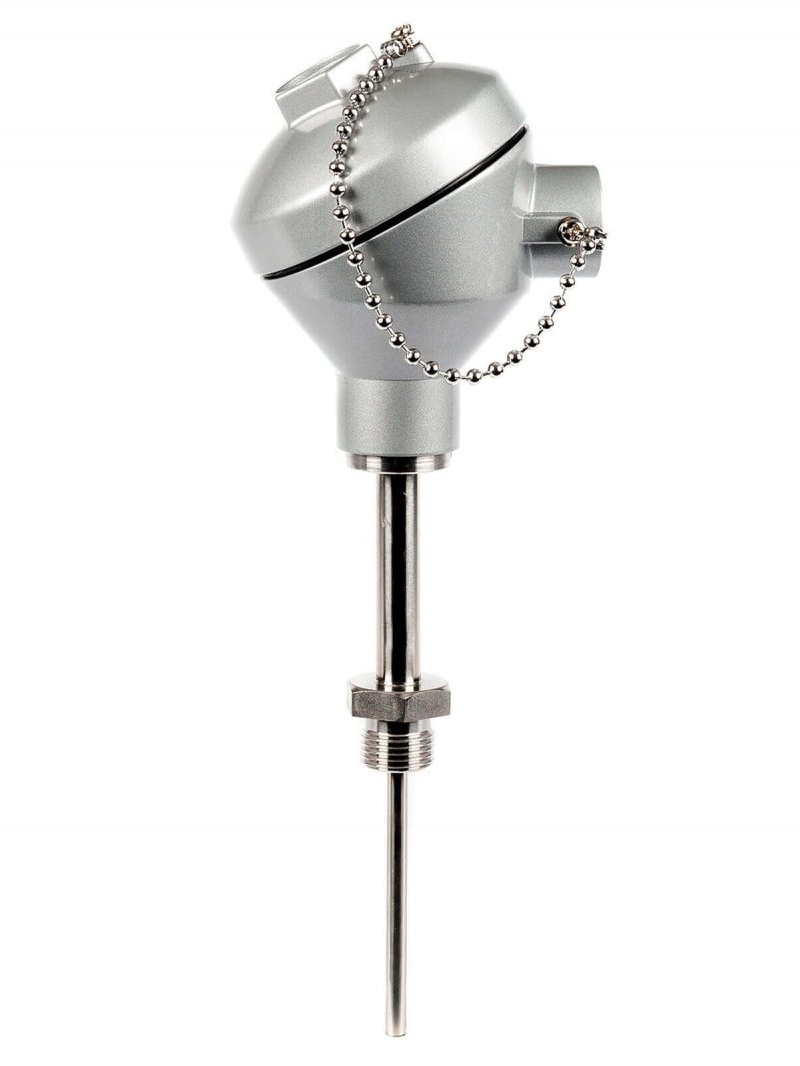

The RTD320 is a versatile immersion-style RTD sensor (Pt100 or Pt1000) with an integral extension, process thread, and connection head. It can be configured with BSPP, BSPT, NPT, or Metric threads, and is available in 2-, 3-, or 4-wire designs, in simplex, duplex, or triplex formats. Accuracy classes include 1/10 DIN, 1/5 DIN, 1/3 DIN, Class A, or Class B. Connection heads are offered in aluminium, stainless steel, or plastic with M20 x 1.5 entry, and termination options include ceramic block, 4–20 mA transmitter, or tails. Approved for ATEX, IECEx, and UKEX, it operates between -196°C and +650°C.
Downloads
