PD Flow Switch
- Nominal pipe sizes 10mm to 80mm
- 2 - 500 l/min switching ranges
- Screw Connection with socket
- Medium Temperature -20 °C to 60 °C
- 250 l/min max flow
- No contact switching
- Description
- Downloads
- Product Catalogue

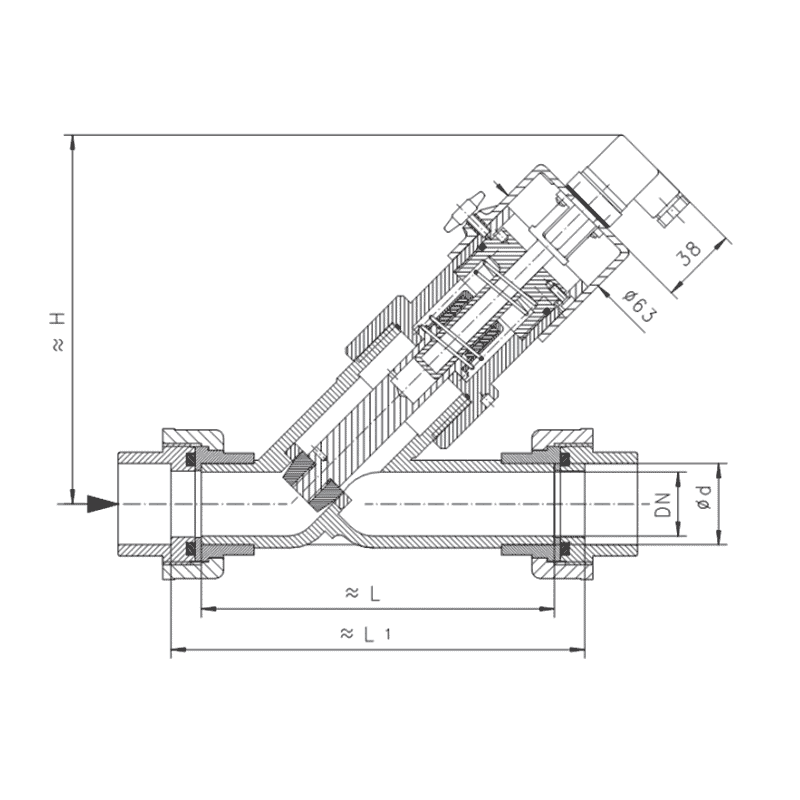

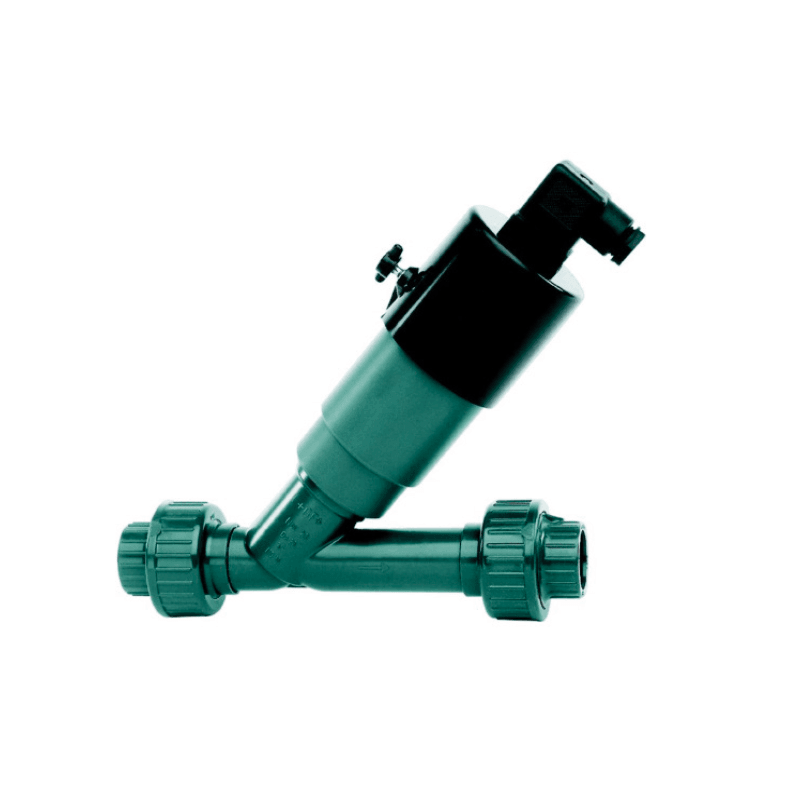

The Novafix PD-...MH Flow Switch is a reliable mechanical flow switch designed for fluid media, featuring a robust PVC construction and no-contact reed switch activation. It offers highly reproducible switching and is insensitive to dirt, ensuring consistent performance even in challenging environments. The precise switching valve can be finely adjusted through a simple rotation, allowing accurate flow monitoring.
Available for nominal widths DN 15 to DN 50, the flow switch supports flow ranges from 2 to 200 l/min and pressures up to 10 bar, making it suitable for water and other fluids (oils and gases on request). The device includes a glue socket process connection and operates within temperatures of -20 to +60 °C.
With a compact design and IP44 protection, the Novafix PD-...MH is ideal for applications requiring durability, ease of installation, and precise flow control. Optional features include signal lamps, enhanced protection, and specialized contacts for tailored performance.
