KELCO

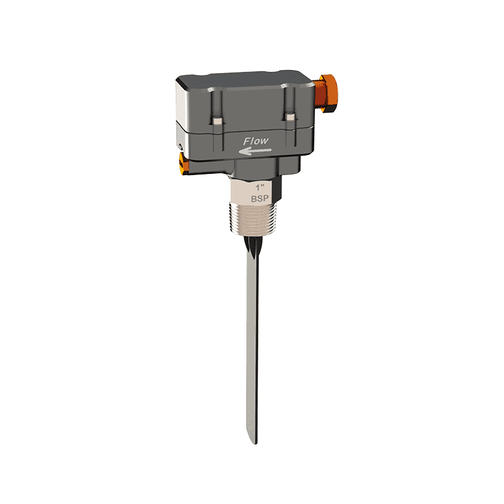

FM Series Paddle Flow Switch
- 0 to 500V AC 15 Amp S.P.D.T switch
- 316 Stainless Process Connection
- Super Tough Billet Aluminium Housing
- Manual override built in
- 3/4” & 1” models available with BSP or NPT threads
- 400 Bar (5800 psi) pressure rating
- Seal-less magnetic drive
- Dieselene & High Temperature versions available
- Weatherproof IP67 housing
- Easily serviceable
Description
The FM series fl ow switch is built tough for the most arduous industrial and mining applications. It is a rugged but highly sensitive paddle fl ow switch suitable for a wide range of fl ow sensing applications in both hot and cold liquid.
Downloads
 |
Technical Datasheet |
