Expansion Joints

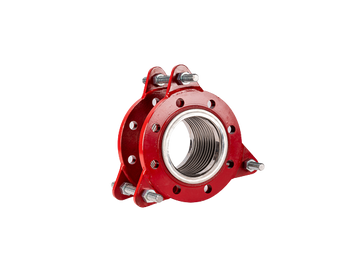

HLS LRTY Flexible Connector For Pump Connections
HELS
HLS LRTY Flexible Connector For Pump Connections
  • Metallic Expansion Joint - Tie Rods - Vibration Absorber
  • Bellow:  Aisi 304/321
  • Tie-rod: St37,2
  • Flange: St37,2
  • Connection: Floating Flange X Floating Flange
  • Pressure: Pn16
  • Temperature: -80/+427oc

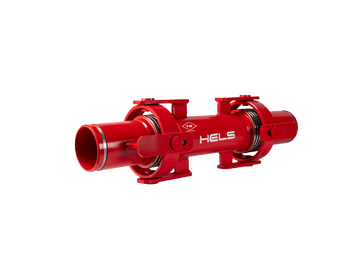

HLS KMY FM Approved Gimbal Expansion Joint Grooved
HELS
HLS KMY FM Approved Gimbal Expansion Joint Grooved
  • Bellow: Aisi 304/321
  • Grooved End & Intermediate Pipe: St37,2
  • Gimbal: St37,2
  • Connection:Grooved Ends
  • Pressure: PN16
  • Temperature: -80/+427oc

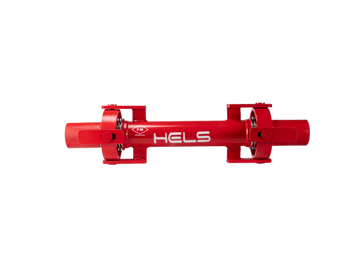

HLS KMB FM Approved Gimbal Expansion Joint Butt Welded
HELS
HLS KMB FM Approved Gimbal Expansion Joint Butt Welded
  • Bellow: Aisi 304/321
  • Intermediate Pipe: St37,2
  • Gimbal: St37,2
  • Connection: Butt Weld X Butt Weld
  • Pressure: PN16
  • Temperature: -80/+427oc

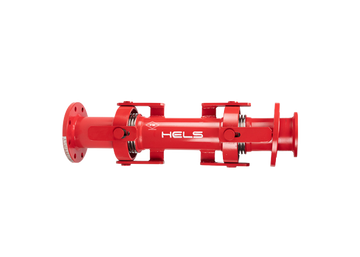

HLS KMF FM Approved Gimbal Expansion Joint Flanged
HELS
HLS KMF FM Approved Gimbal Expansion Joint Flanged
  • Bellow: Aisi 304/321
  • Intermediate Pipe: St37,2
  • Flange : St37,2
  • Gimbal: St37,2
  • Connection: Floating Flange X Fixed Flange
  • Pressure: PN16
  • Temperature: -80/+427oc
HLS KMY Gimbal Expansion Joint (Grooved)
HELS
HLS KMY Gimbal Expansion Joint (Grooved)
  • Bellow: Aisi 304/321
  • Groooved end & Intermediate Pipe: St37,2
  • Gimbal: St37,2
  • Connection: Grooved Ends
  • Pressure: PN16
  • Temperature: -80/+427oc
HLS KMB Gimbal Expansion Joint Butt Welded
HELS
HLS KMB Gimbal Expansion Joint Butt Welded
  • Bellow: Aisi 304/321
  • Intermediate Pipe: St37,2
  • Gimbal: St37,2
  • Connection: Butt Weld X Butt Weld
  • Pressure: PN16
  • Temperature: -80/+427oc
HLS KMF Gimbal Expansion Joint Flanged
HELS
HLS KMF Gimbal Expansion Joint Flanged
  • Bellow: Aisi 304/321
  • Intermediate Pipe: St37,2
  • Flange: St37,2
  • Gimbal: St37,2
  • Connection: Floating Flange X Fixed Flange
  • Pressure: PN16
  • Temperature: -80/+427OC
HLS LRY Universal Tied Expansion Joint Grooved
HELS
HLS LRY Universal Tied Expansion Joint Grooved
  • Bellow: Aisi 304/321
  • Tie-Rod: St37,2 Flange: St37,2
  • Intermediate Pipe: St37,2
  • Connection: Butt Weld X Butt Weld
  • Axial Movement:  Dn25-dn50 -15/+15mm ; D65-dn300 -30/+30mm
  • Lateral Movement: -25/+25mm; -50/+50mm; -75/+75mm; -100/+100mm
  • Pressure: PN16
  • Temperature: -80/+427OC
HLS LRB Universal Tied Expansion Joint Butt Welded
HELS
HLS LRB Universal Tied Expansion Joint Butt Welded
  • Bellow: Aisi 304/321
  • Tie-Rod: St37,2
  • Flange: St37,2
  • Intermediate Pipe: St37,2
  • Connection: Butt Weld X Butt Weld
  • Axial Movement:  Dn25-dn50 -15/+15mm ; D65-dn300 -30/+30mm
  • Lateral Movement: -25/+25mm; -50/+50mm; -75/+75mm; -100/+100mm
  • Pressure: PN16
  • Temperature: -80/+427OC

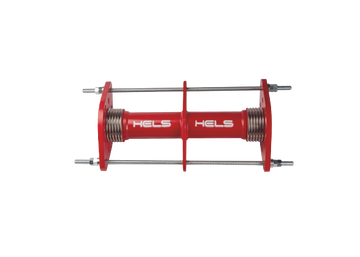

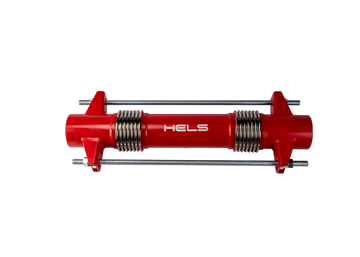

HLS LRF Universal Tied Expansion Joint Flanged
HELS
HLS LRF Universal Tied Expansion Joint Flanged
  • Bellow:  Aisi 304/321 Tie-Rod: St37,2
  • Flange: St37,2
  • Intermediate Pipe: St37,2
  • Connection: Floating Flange x Floating Flange
  • Axial Movement:  DN25-DN50 -15/+15mm ; D65-DN300 -30/+30mm
  • Lateral Movement: -25/+25mm; -50/+50mm; -75/+75mm; -100/+100mm
  • Pressure: PN16
  • Temperature: -80/+427OC

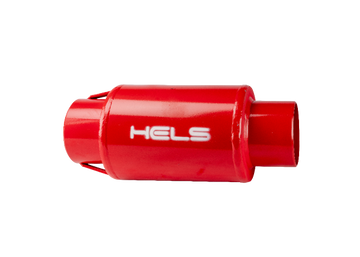

HLS DBB External Pressurized Expansion Joint Butt Welded
HELS
HLS DBB External Pressurized Expansion Joint Butt Welded
  • Bellow: Aisi 304/321
  • Inner and Outer: St37,2
  • Butt Weld: St37,2
  • Connection: Butt Weld X Butt Weld
  • Pressure: PN16
  • Temperature: -80/+427oc

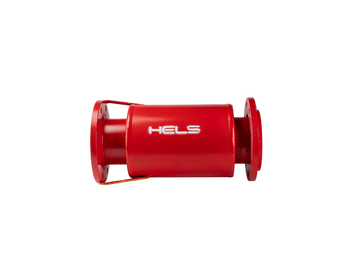

HLS DBF External Pressurized Expansion Joint - Flanged
HELS
HLS DBF External Pressurized Expansion Joint - Flanged
  • Bellow: Aisi 304/321
  • Inner and Outer Pipe: St37,2
  • Flange: St37,2
  • Connection: Floating Flange X Fixed Flange
  • Pressure: PN16
  • Temperature: -80/+427oc

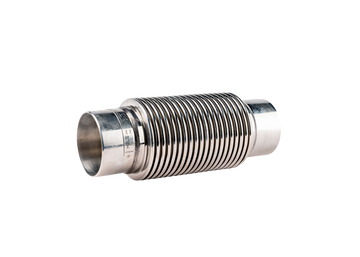

Metallic Axial Expansion Joint Butt Welded
HELS
Metallic Axial Expansion Joint Butt Welded
  • Bellow: Aisi 304/321
  • Butt Weld: St37,2
  • Inner Sleeve: Aisi 304/321
  • Connection: Butt Weld X Butt Weld
  • Pressure: PN16
  • Temperature: -80/+427oc

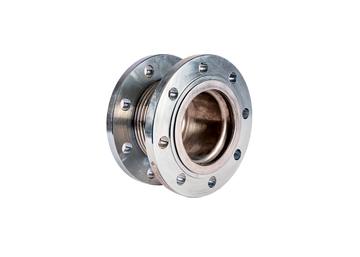

HLS MKD Axial Expansion Joint - Floating Flanged
HELS
HLS MKD Axial Expansion Joint - Floating Flanged
  • Bellow: Aisi 304/321
  • Flange: St37,2
  • Inner Sleeve: Aisi 304/321
  • Connection: Floating Flange x Floating Flange
  • Pressure: PN16
  • Temperature: -80/+427oc

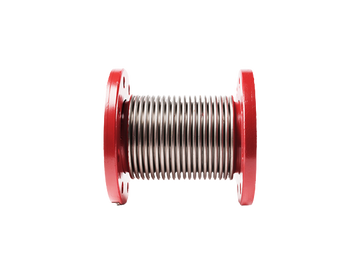

HLS MKS Axial Expansion Joint - Fixed Flanged
HELS
HLS MKS Axial Expansion Joint - Fixed Flanged
  • Bellow: Aisi 321
  • Inner Sleeve: Aisi 321 Flange : ST37,2
  • Connection: Fixed Flange X Fixed Flange
  • Pressure: PN16
  • Temperature: -80/+427oc
