Dinel

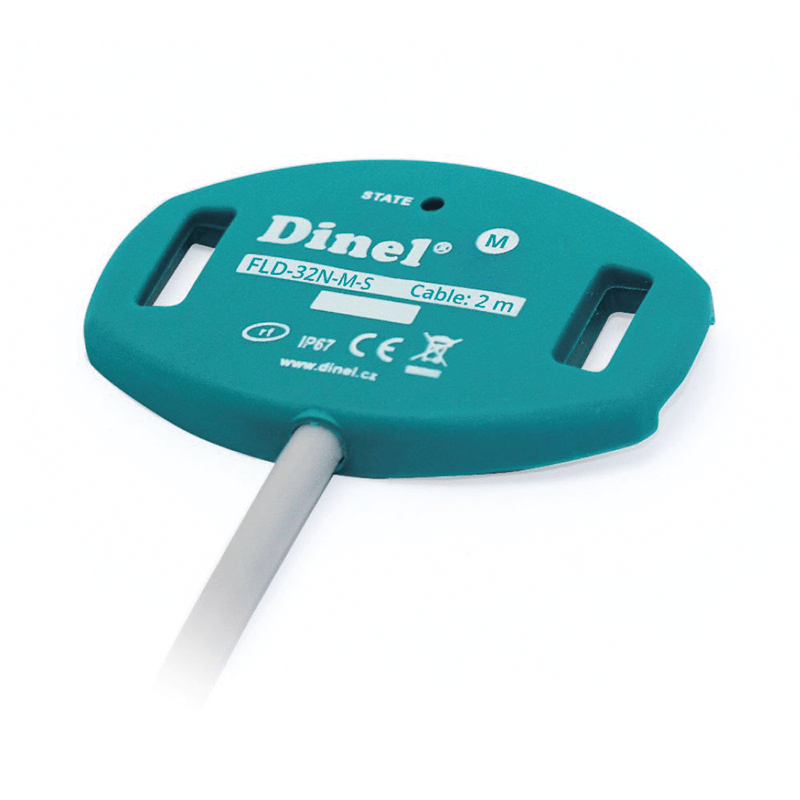

FLD-32 'Flexi-Watch'

  • Supply voltage: 6 ... 30 V DC
  • Current consumption (idle-circuit condition): max. 0.6 mA
  • Switched current (min. / max.): 3.3 / 40 mA
  • Residual voltage in the closed state: max. 6 V
  • Max. switching frequency: 1 Hz
  • Ambient temperature range: -20 ... +70 °C
  • Diameter of the vessel for the attachment of the sensor: min. 300 mm
  • Protection class IP 67
  • Housing material: polyurethane
  • Type of connection cable: PUR 3 x 0.14 mm2
  • Weight (including 2m cable): about 40 g
  • Weight (without cable): 10 g
£0.00 In Stock Sold out

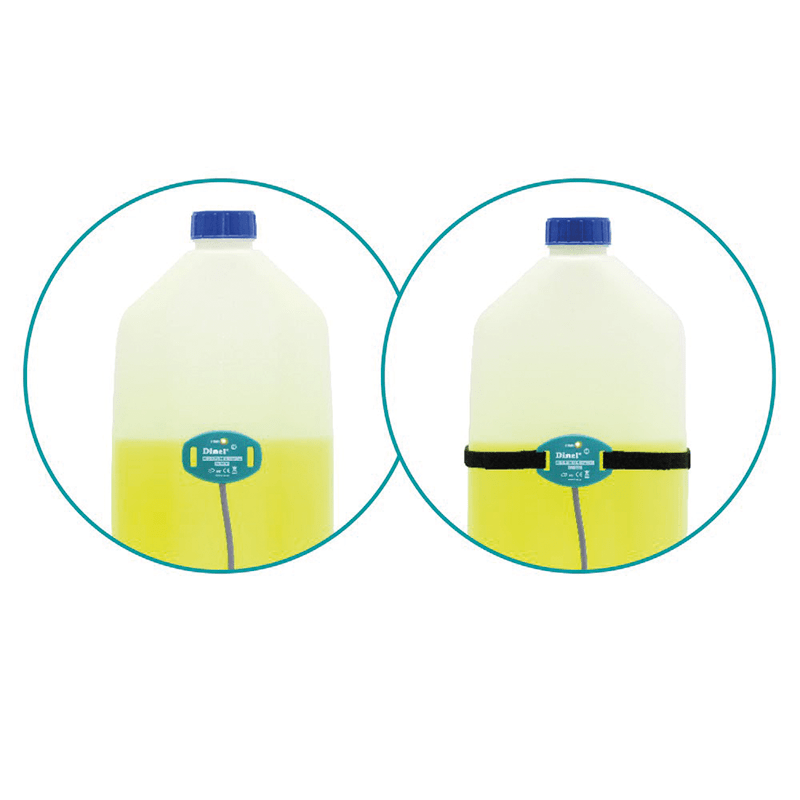

Thru-wall level switches FLD–32 "Flexi Watch" are designed for indication of the presence of (conductive or non-conductive) liquids in glass or plastic vessels. The sensitivity and switching mode can simply be set up using the "programming" wire or magnetic pen, depending on the type of sensor used. The sensor housing is made of a flexible polyurethane material with a self-adhesive layer and holes for fastening bands.
.
