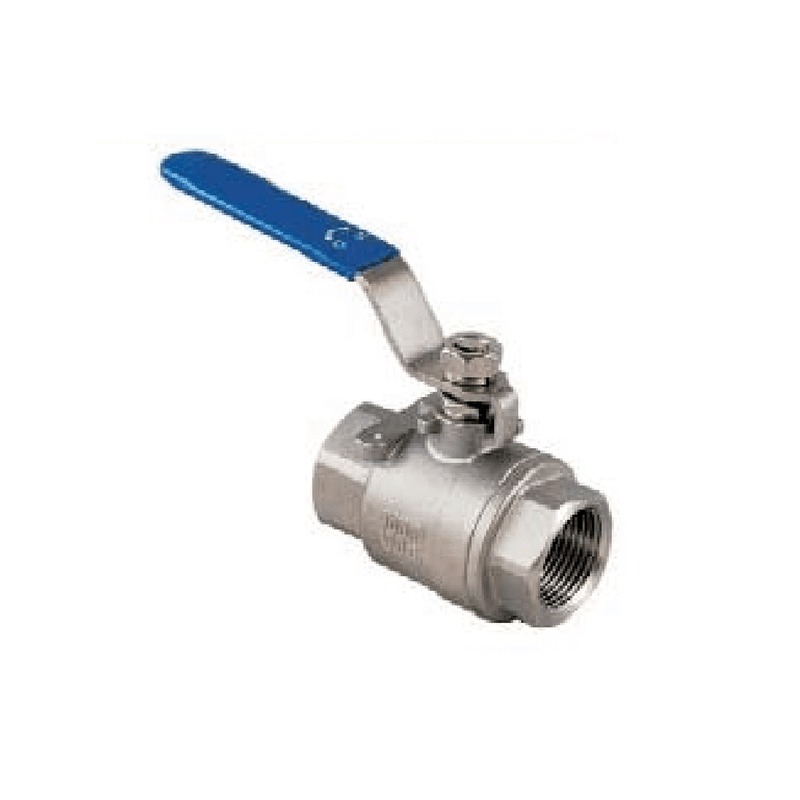

WR 207 - 2 Piece Full Bore Ball Valve

  • 2 piece(207) or 3 piece(302) versions
  • 1/4” to 4” BSP connections
  • Stainless steel construction
  • Rated up to 63 bar
  • Rated from -25°c - 180°c
  • PTFE seals
£0.00 In Stock Sold out
  • Construction: stainless steel. CF8M (316) investment casting.
  • Gas threaded ends DIN 2999.BSP
  • Seats and seals : PTFE + 15% GF o’ring stem: viton . PN 63
  • Temp: -25°+ 180°C.
  • Manually operated by handle with locking system
