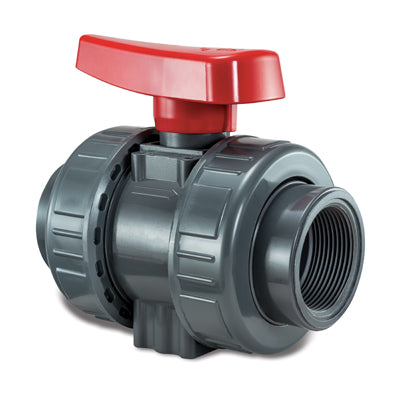

Type 24 True Union Ball Valves
- SERIES: Type 24
- SIZES: 1/2” to 4”

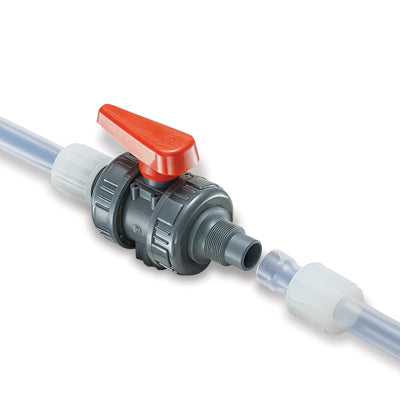

- ENDS: Socket, Threaded, Flanged or ChemFlareTM
- SEATS: PTFE
- SEALS: EPDM or FKM (Viton®)
- Description
- Downloads
Chemline’s Type 24 full-feature industrial True Union ball valve is a full port, fully blocking valve, pressure rated at 230 psi (16 bar). Actuation is quick and easy using the ISO standard mounting kits. An integral base mounting pad is provided for panel mounting. Extra manufacturing processes assure long trouble-free life. Valves are certified under NSF/ANSI Standard 61 for contact with drinking water.
✓ 230 psi Working Pressure
✓ Fully Blocking Downstream union nut may be safely disassembled for piping maintenance while valve is closed off under full pressure
✓ Compact Space saving ISO short body length
✓ Double Stem O-Rings Provide for high degree of safety on hazardous fluid applications
✓ Easy to Actuate Electric or pneumatic actuators may be easily mounted using ISO standard mounting kits

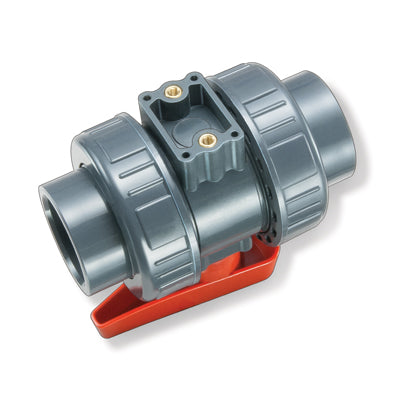

✓ Panel Mountable Threaded inserts in valve base allow valve to be securely anchored to panel or support
