800 Series  PR-Pressure Reducing Valve

£0.00 In Stock Sold out

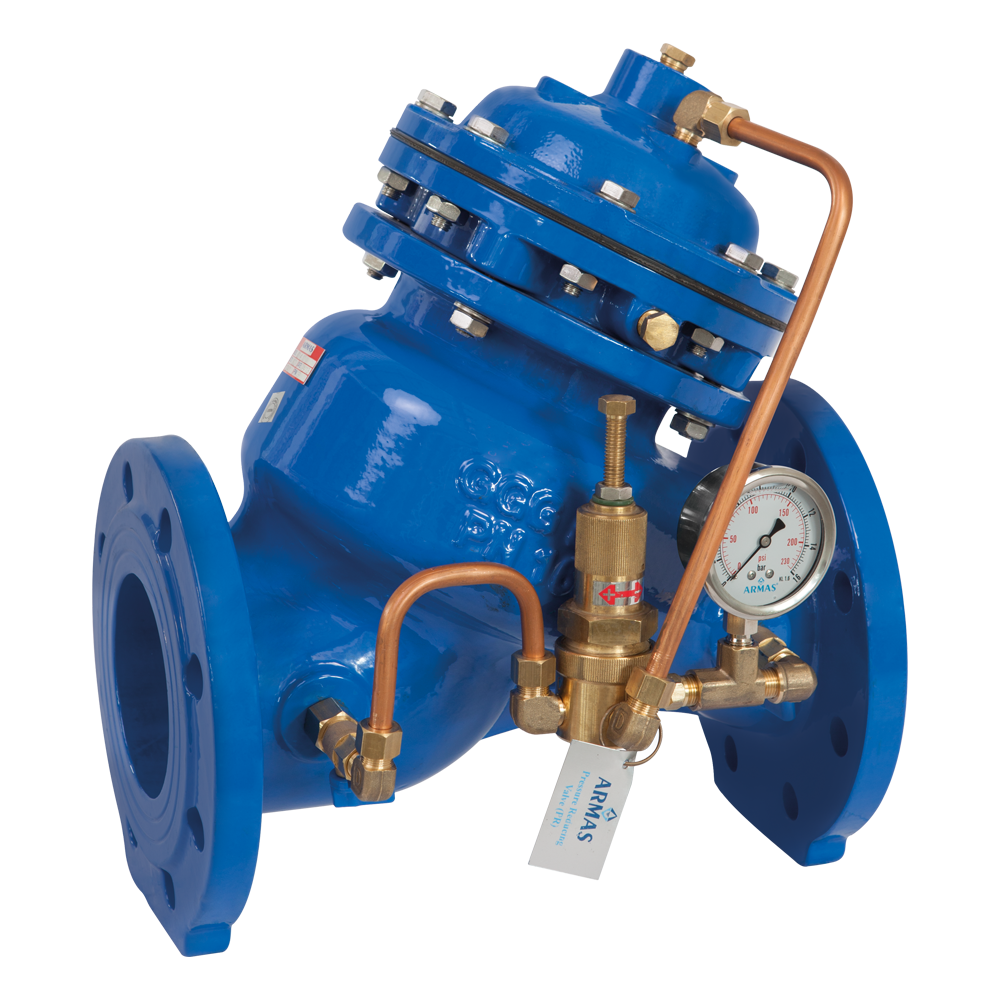

Armaş “PR” model pressure reducing control valve is the hydraulic control valve which reduces high upstream pressure value into desired lower pressure value by means of built-in pressure reducing pilot valves.Pressure reducer control valve controls downstream pressure value continuously and maintains it constant without being affected from flow rate and upstream pressure values.When no flow exists in the system,it is closer by itself automatically.When valve upstream pressure value decreases below adjusted downstream pressure value,it is opened fully by itself.

The valve will be diaphragm actuated disc closing automatic hydraulic control valve which works with line pressure. Double-chamber diaphragm actuator provides quicker and non-impact opening/ closing thanks to disc-closing valve design and prevents blockage by showing less sensitivity against solid substances within fluid.

Valve size same as main line or one size smaller. Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec)
