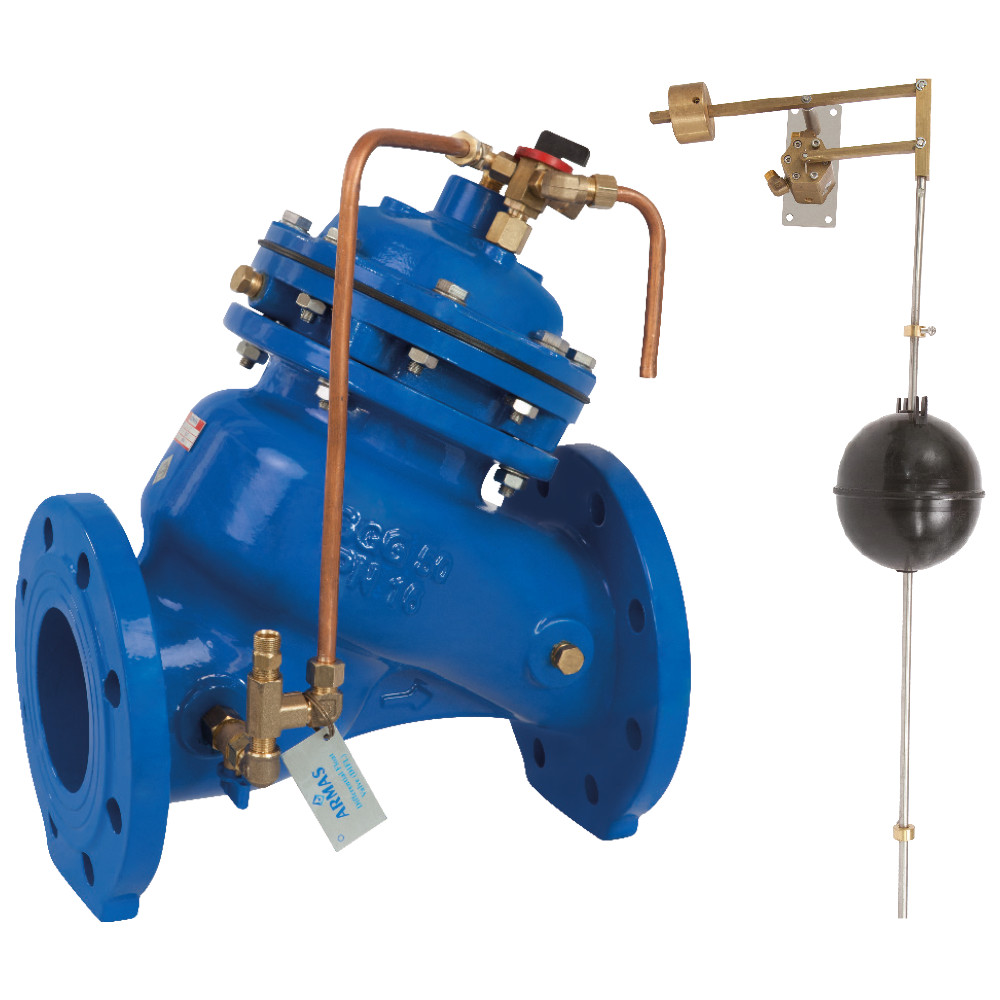

800 Series DIFL-Differential Float Level Control Valve
- Diaphragm-actuated, disc-closing control valve
- Double-chamber actuator for rapid, non-impact operation
- Wide adjustable min–max level range
- Surge-free tight closing at high level
- Reduced clogging; less sensitive to suspended solids
- Stable performance regardless of flow/pressure changes
 |
Technical Datasheet |
- Description
- Product Catalogue
- Downloads
Armaş “DIFL” model differential float level control valve is the hydraulic control valve designed to control water level in reservoirs and tanks in desired ranges. Main valve is closed as wholly sealed without surge when water reach desired level thanks to 4/3 way differential control pilot. Max. and min. water level in reservoir may be adjusted to desired value in a wide range. Thanks to this feature, pump does not put into/out of service frequently during level control of reservoir fed by pump. Valve controls water level and keeps it in desired range without being affected from flow rate and pressure changes.
The valve will be diaphragm actuated disc closing automatic hydraulic control valve which works with line pressure. Double-chamber diaphragm actuator provides quicker and non-impact opening/ closing thanks to disc-closing valve design and prevents blockage by showing less sensitivity against solid substances within fluid.
Valve size same as main line or one size smaller. Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec)
