Valvulas
Antibubble Floating Valve A.316
- Valve system patented and guarantees a perfect seal with minimum force from the float.
- Connection with Gas Thread, cylindrical DIN-ISO 228/1985.
- Made from stainless steel 18/8 (AISI 316 / DIN 1.4401 & CF8M, DIN 1.4408).
- Swing type valve with silicone shutter, available in VITON, EPDM, BUNA, PTEF, etc. on demand.
- Description
- Downloads
Description

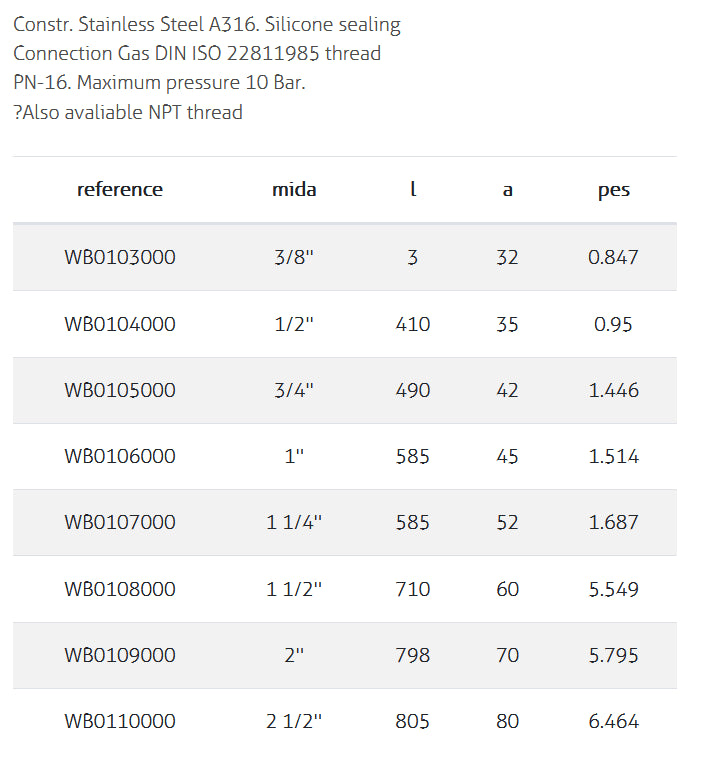

Valve system patented and guarantees a perfect seal with minimum force from the float. Connection with Gas Thread, cylindrical DIN-ISO 228/1985.
Made from stainless steel 18/8 (AISI 316 / DIN 1.4401 & CF8M, DIN 1.4408). Swing type valve with silicone shutter, available in VITON, EPDM, BUNA, PTEF, etc. on demand.
The valve close progressively. Note: For turbulent waters, shaken water deposits found in refrigeration towers, etc. reinforced levers should be used. Nominal pressure PN-16. Maximum variable pressure 10 bar
